Customization provided to standard enclosures including machining, Customized Powder Coating, screen printing, Accessories like Cable Glands, Terminal
Customization provided to standard enclosures including machining, Customized Powder Coating, screen printing, Accessories like Cable Glands, Terminal
Customization provided to standard enclosures including machining, Customized Powder Coating, screen printing, Accessories like Cable Glands, Terminal

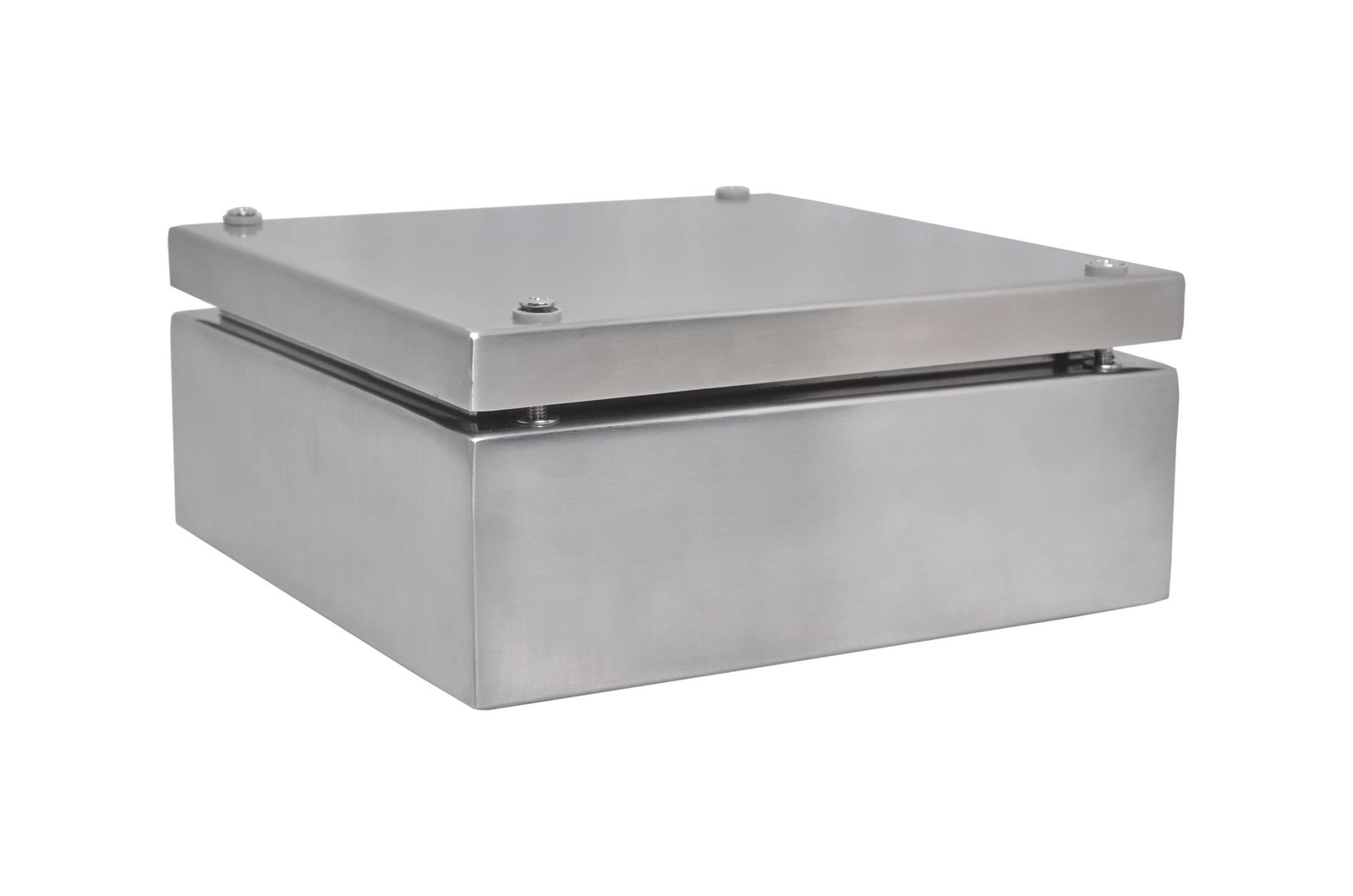

| Material | Stainless steel, 1.25 mm or 1.5 mm; 1.4301 / 304 1.4404 / 316 available on request |
| Surface | Brushed finish, grain 240 to grain 320 |
| Protection class | IP66 according to EN 60529 IP67 / IP69 available on request |
| Temperature range | VMQ (Silicone) seal (standard): -60°C to +175°C EMC (Silicone) seal (optional): -55°C to +200°C |
| Impact resistance | IK 10 (20 Joules) |
| Accessories | Mounting Plates, Mounting Brackets, Internal Hinges, External Hinges |
| Certifications & Approvals | CE, UL, REACH, RoHS, IP, IK, |
| Product Image | OGPL Article No. | OGPL Drawing No. | Length (A) (mm) | Width (B) (mm) | Depth (C) (mm) | Technical Drawings | 3D Models | Technical Data Sheet |
|---|---|---|---|---|---|---|---|---|

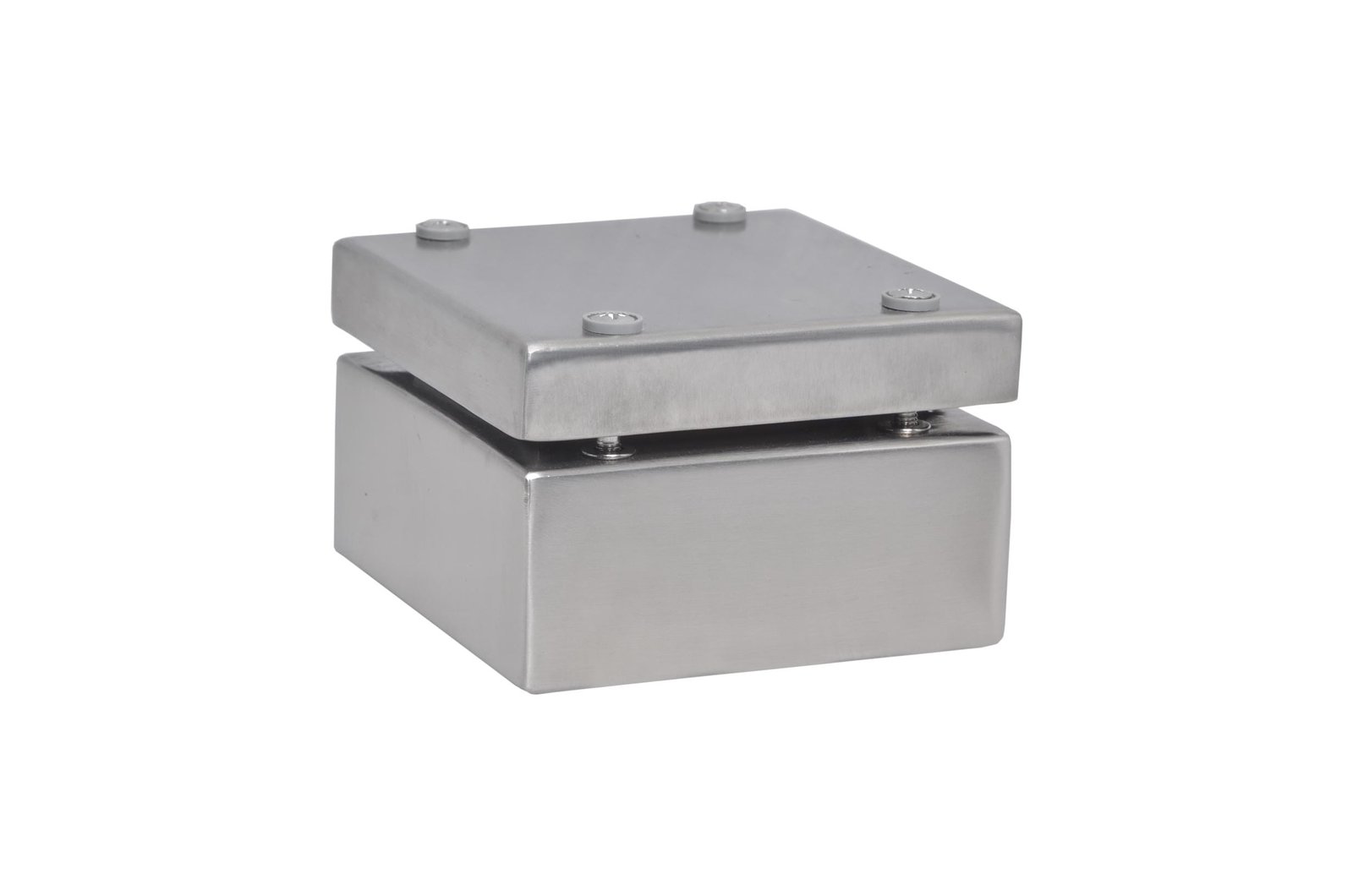

 | OGSJB01 | OG-SSJB-10010061 | 100 | 100 | 61 | Download | Download | Download |

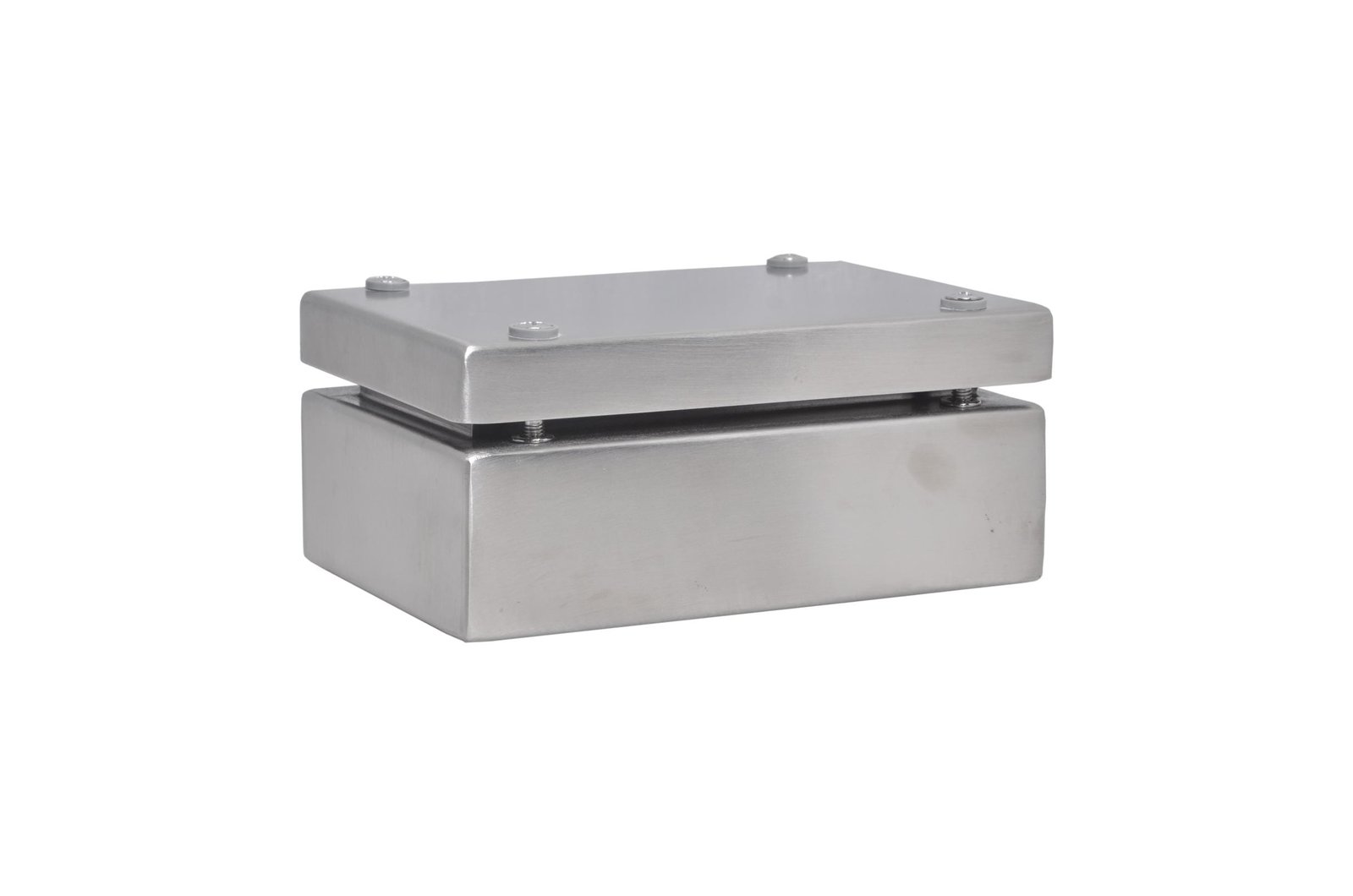

 | OGSJB02 | OG-SSJB-15010061 | 150 | 100 | 61 | Download | Download | Download |

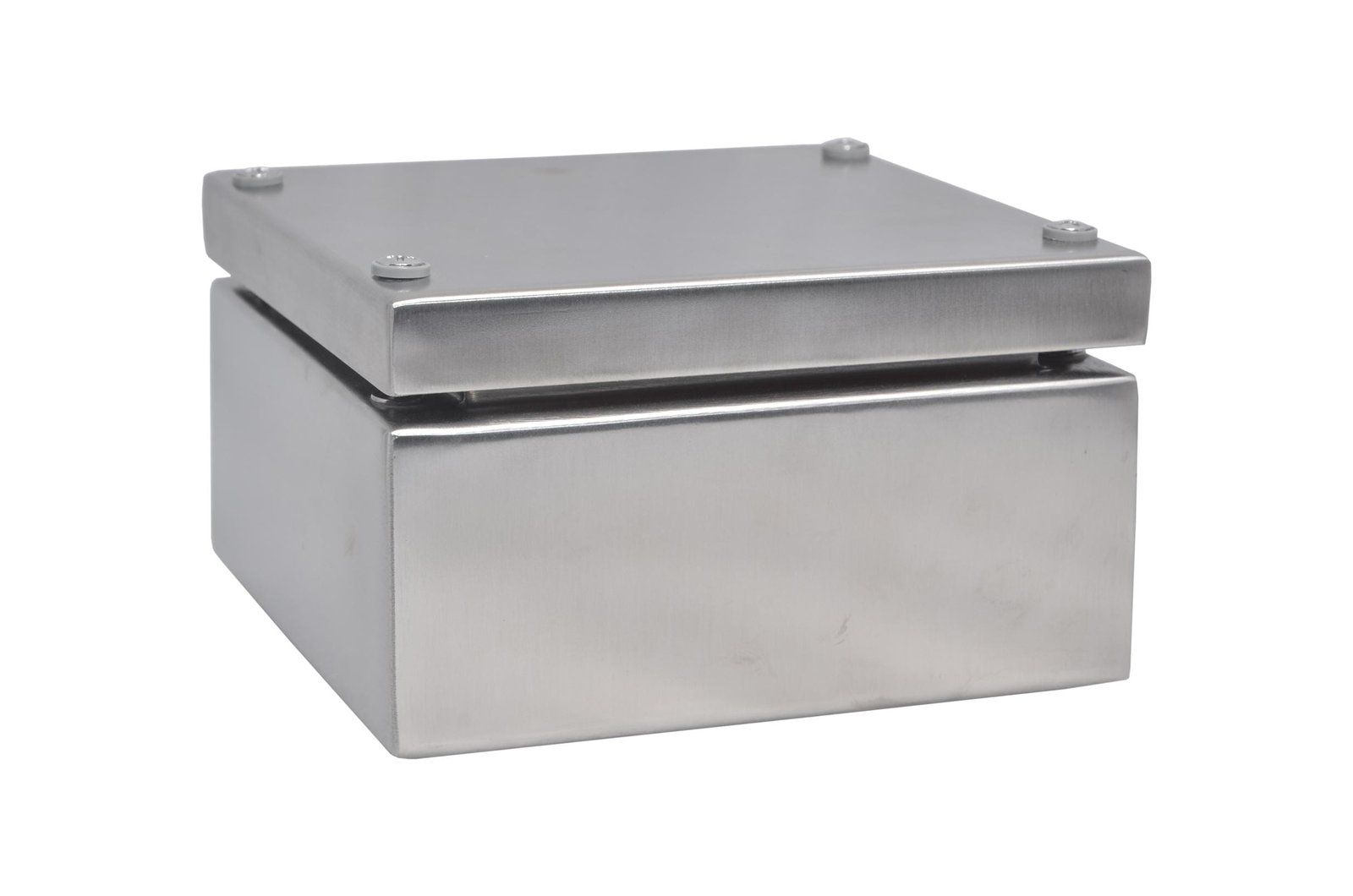

 | OGSJB03 | OG-SSJB-15015081 | 150 | 150 | 81 | Download | Download | Download |

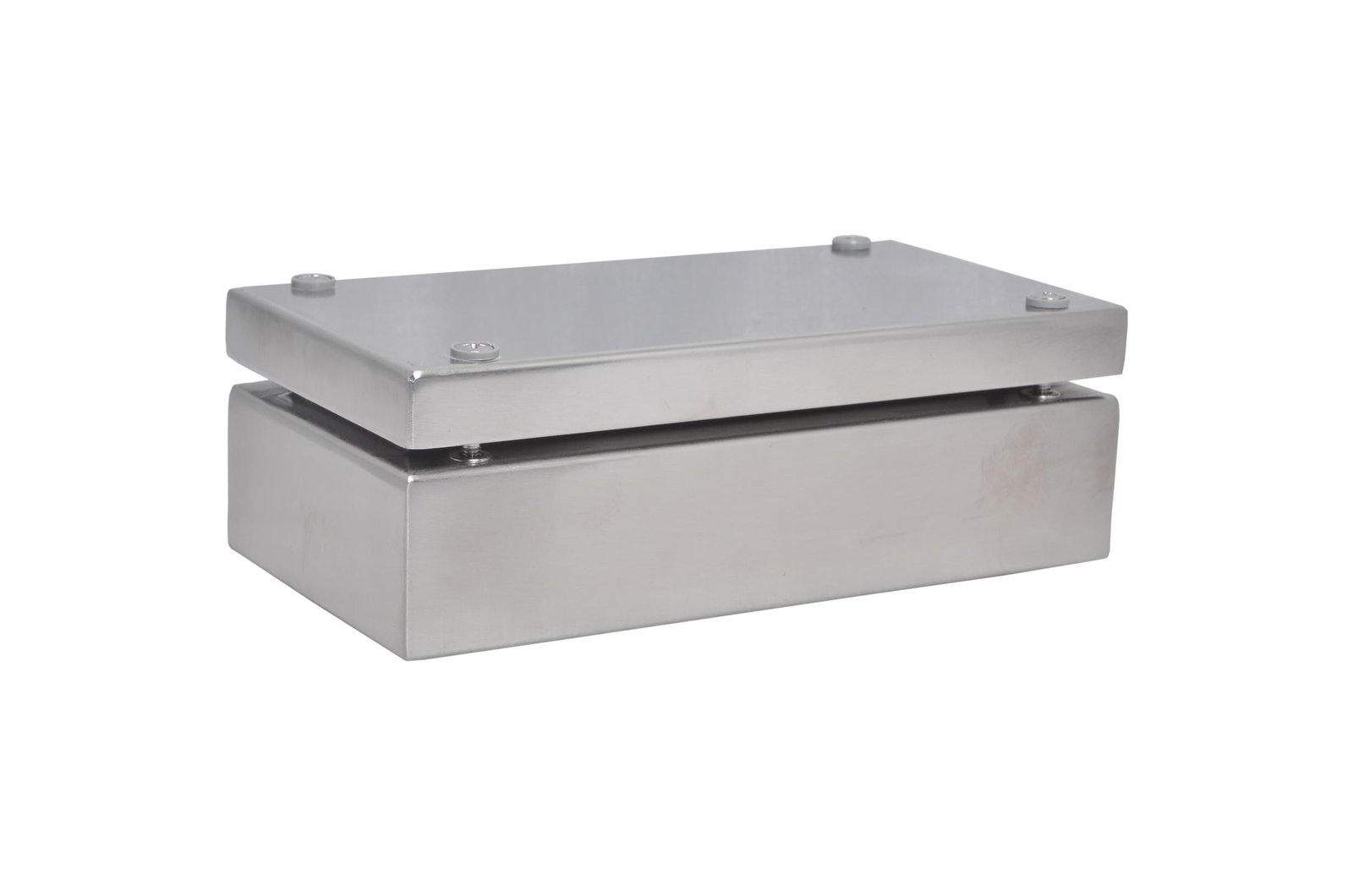

 | OGSJB04 | OG-SSJB-20010061 | 200 | 100 | 61 | Download | Download | Download |
 | OGSJB05 | OG-SSJB-20020081 | 200 | 200 | 81 | Download | Download | Download |

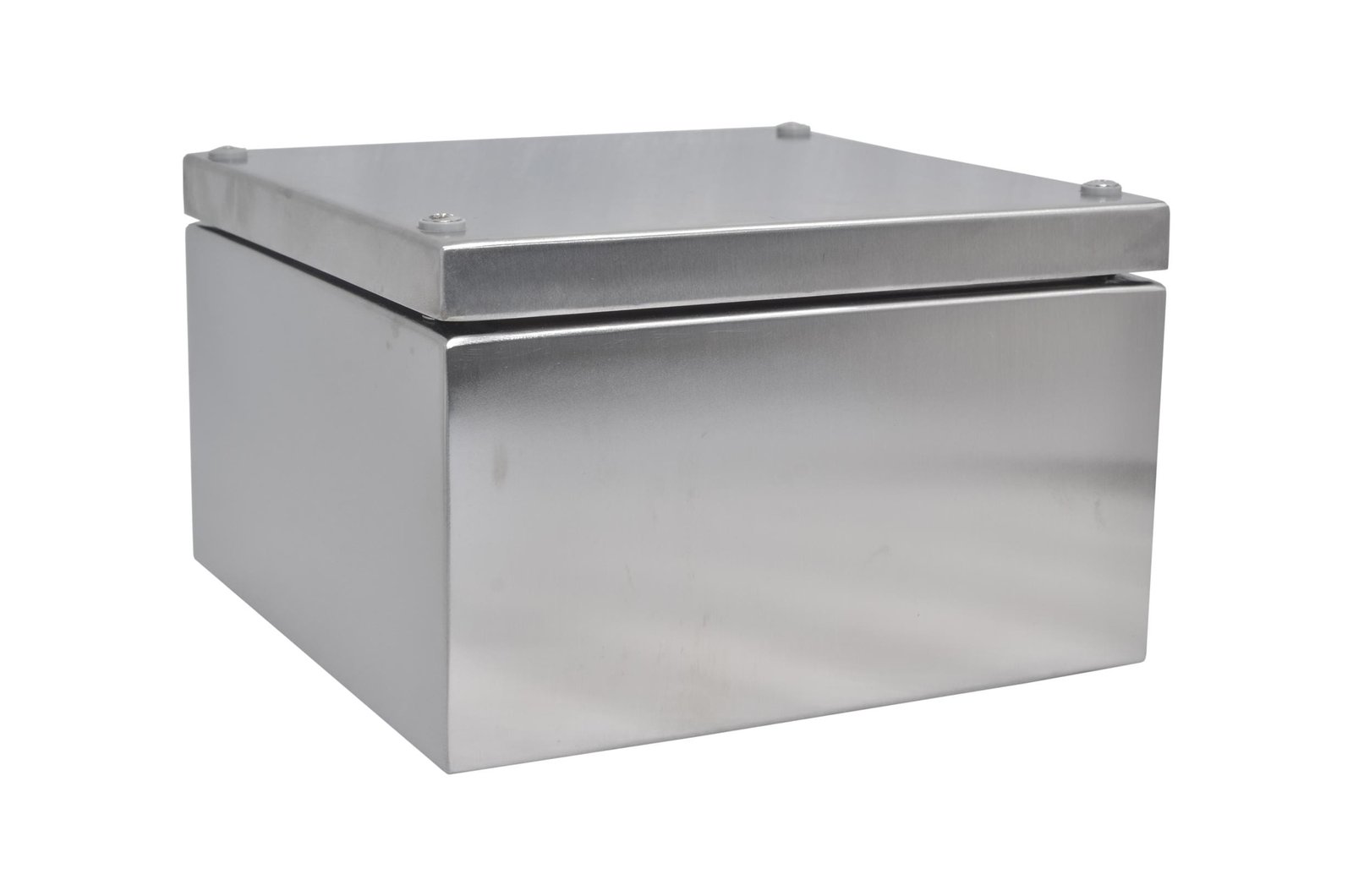

 | OGSJB06 | OG-SSJB-200200121 | 200 | 200 | 121 | Download | Download | Download |

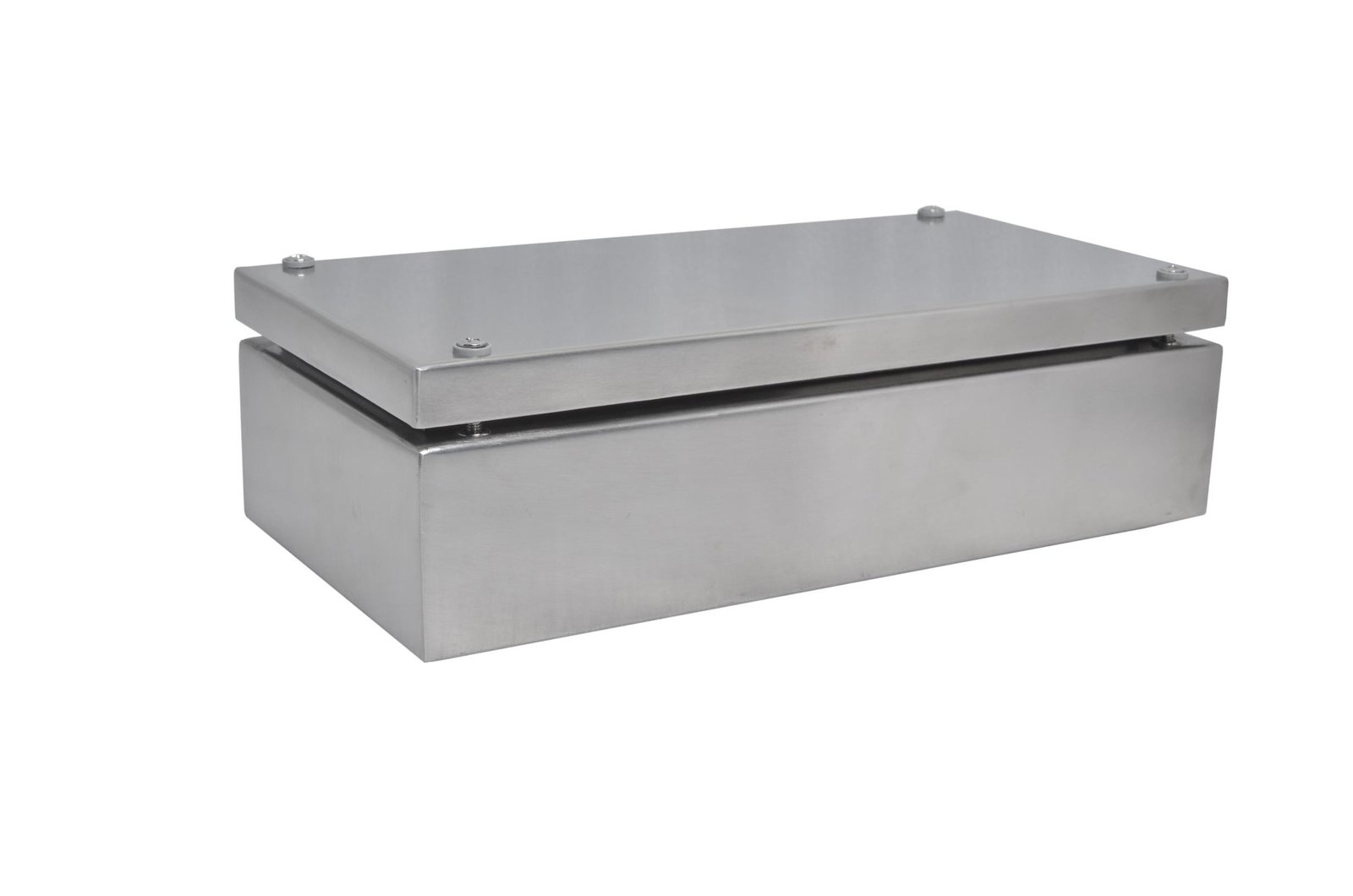

 | OGSJB07 | OG-SSJB-30015081 | 300 | 150 | 81 | Download | Download | Download |

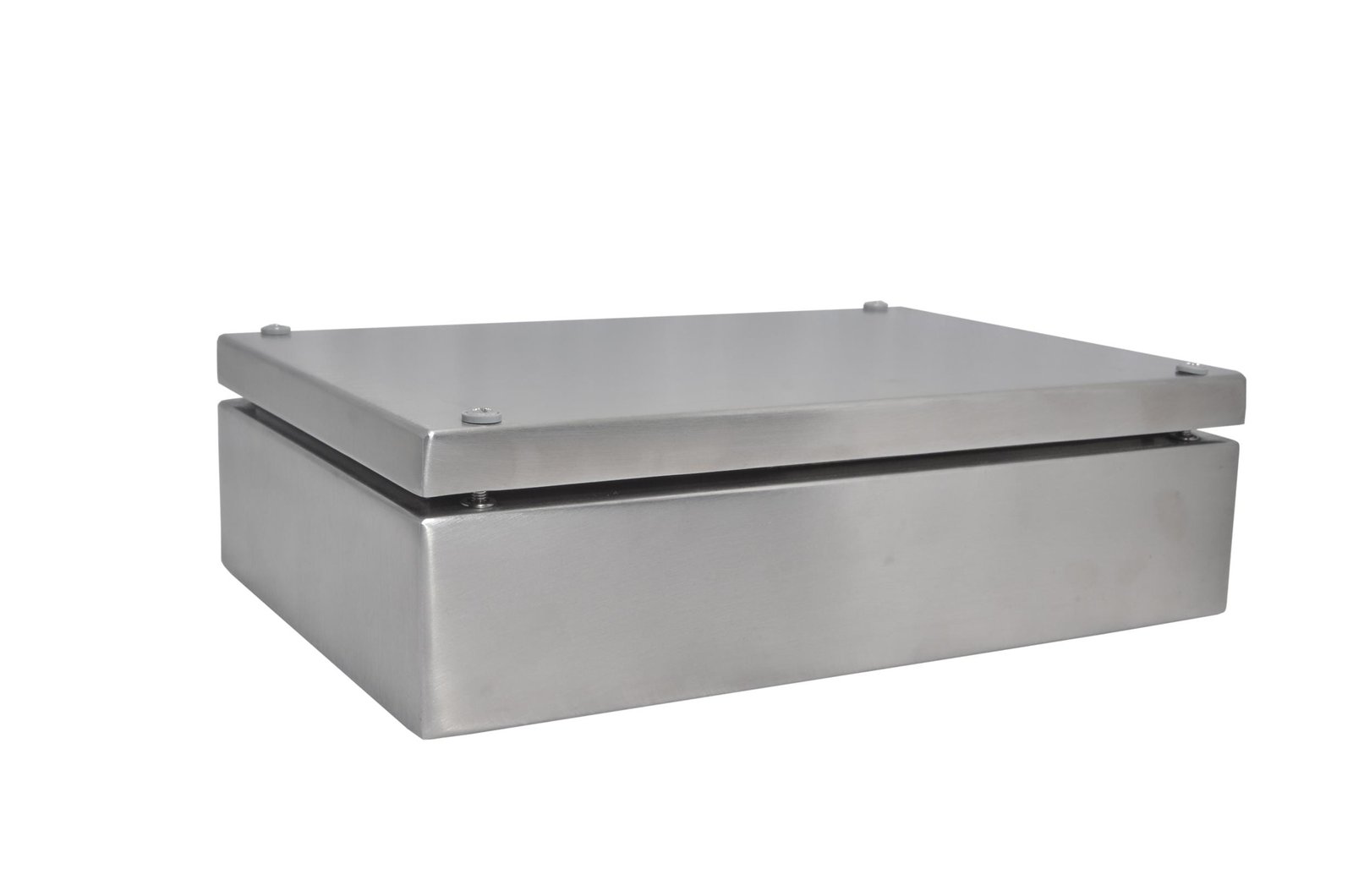

 | OGSJB08 | OG-SSJB-30020081 | 300 | 200 | 81 | Download | Download | Download |

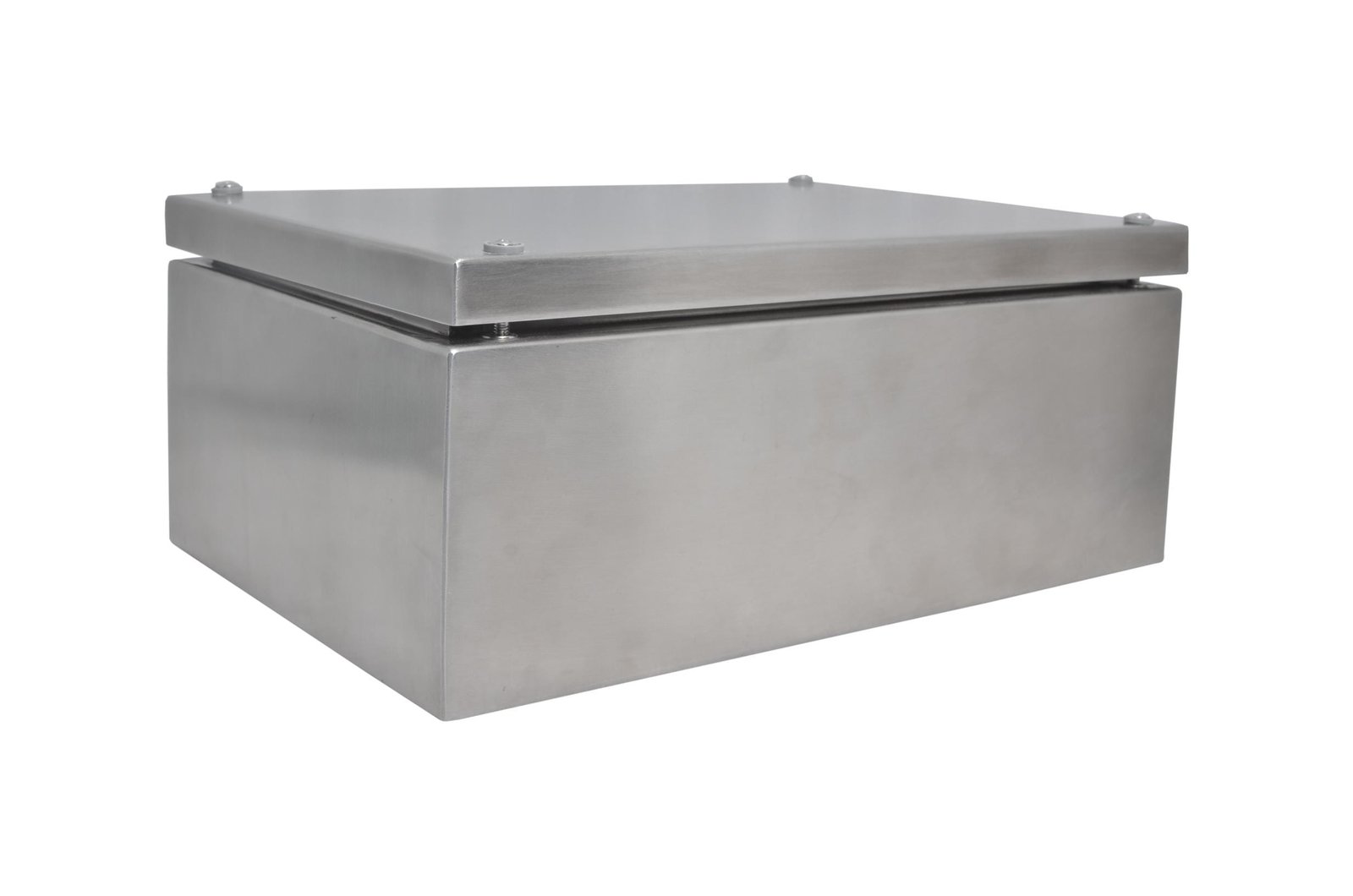

 | OGSJB09 | OG-SSJB-300200121 | 300 | 200 | 121 | Download | Download | Download |

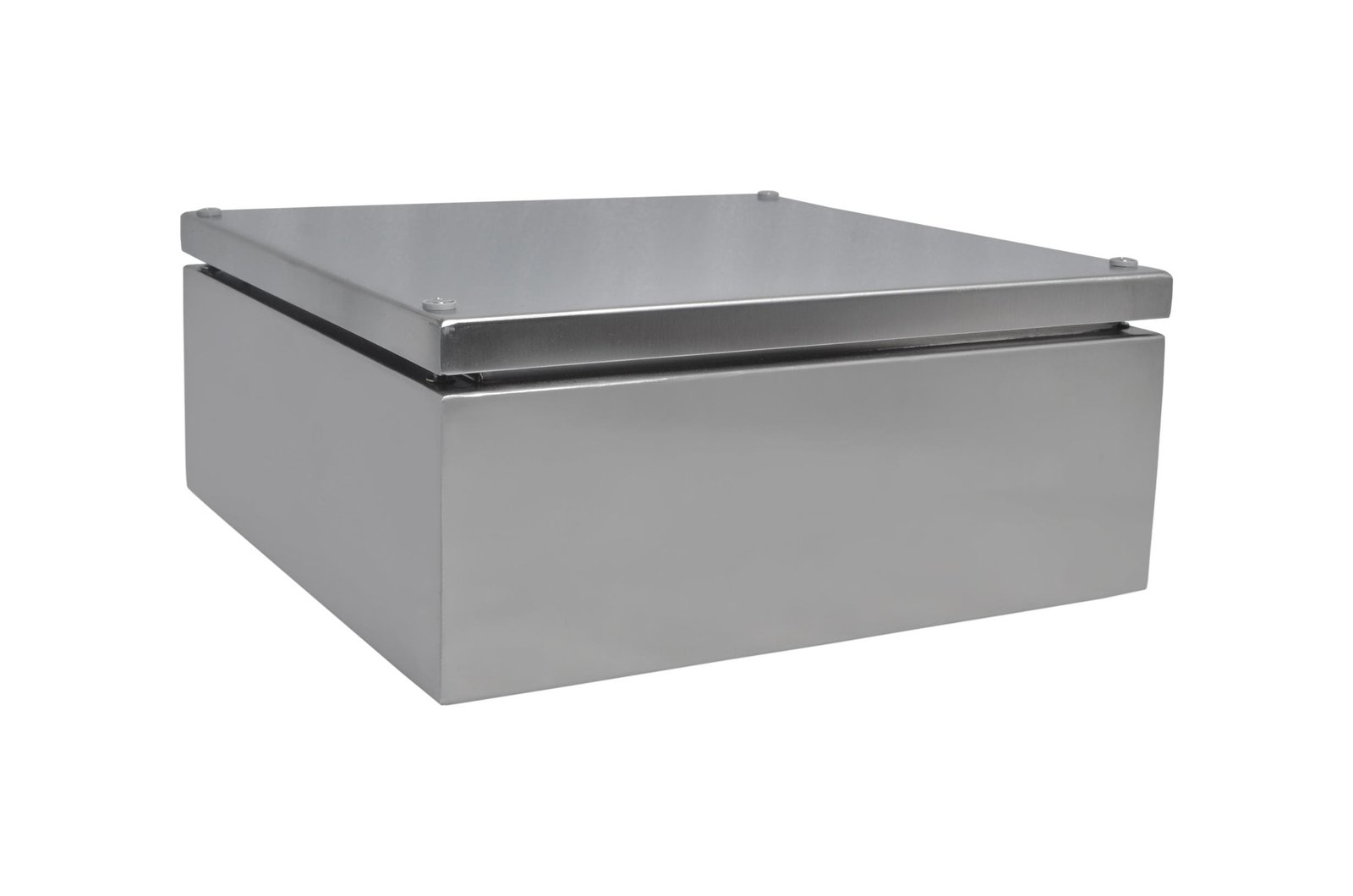

 | OGSJB10 | OG-SSJB-300300121 | 300 | 300 | 121 | Download | Download | Download |
 | OGSJB11 | OG-SSJB-300300161 | 300 | 300 | 161 | Download | Download | Download |

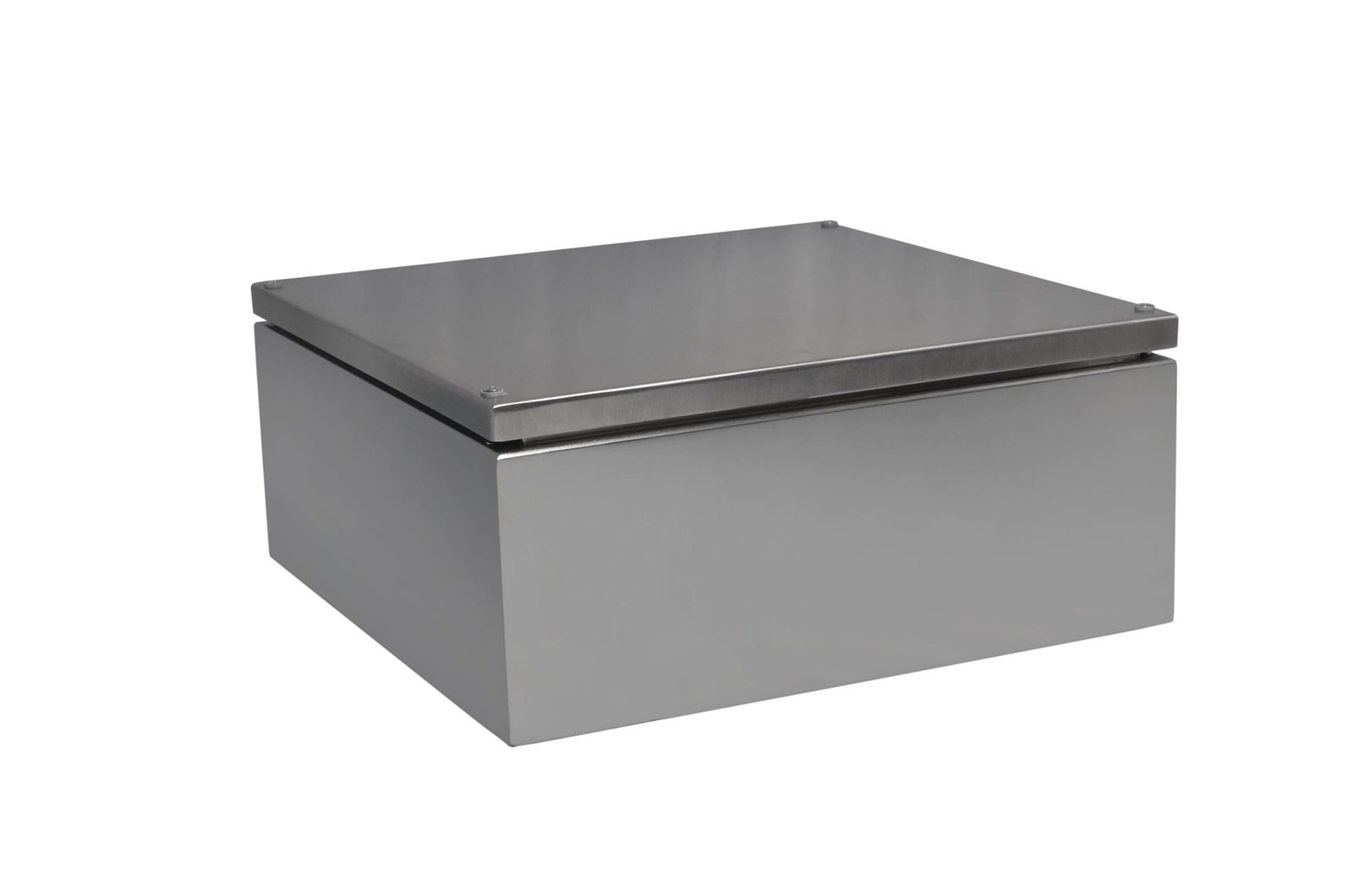

 | OGSJB12 | OG-SSJB-380380161 | 380 | 380 | 161 | Download | Download | Download |

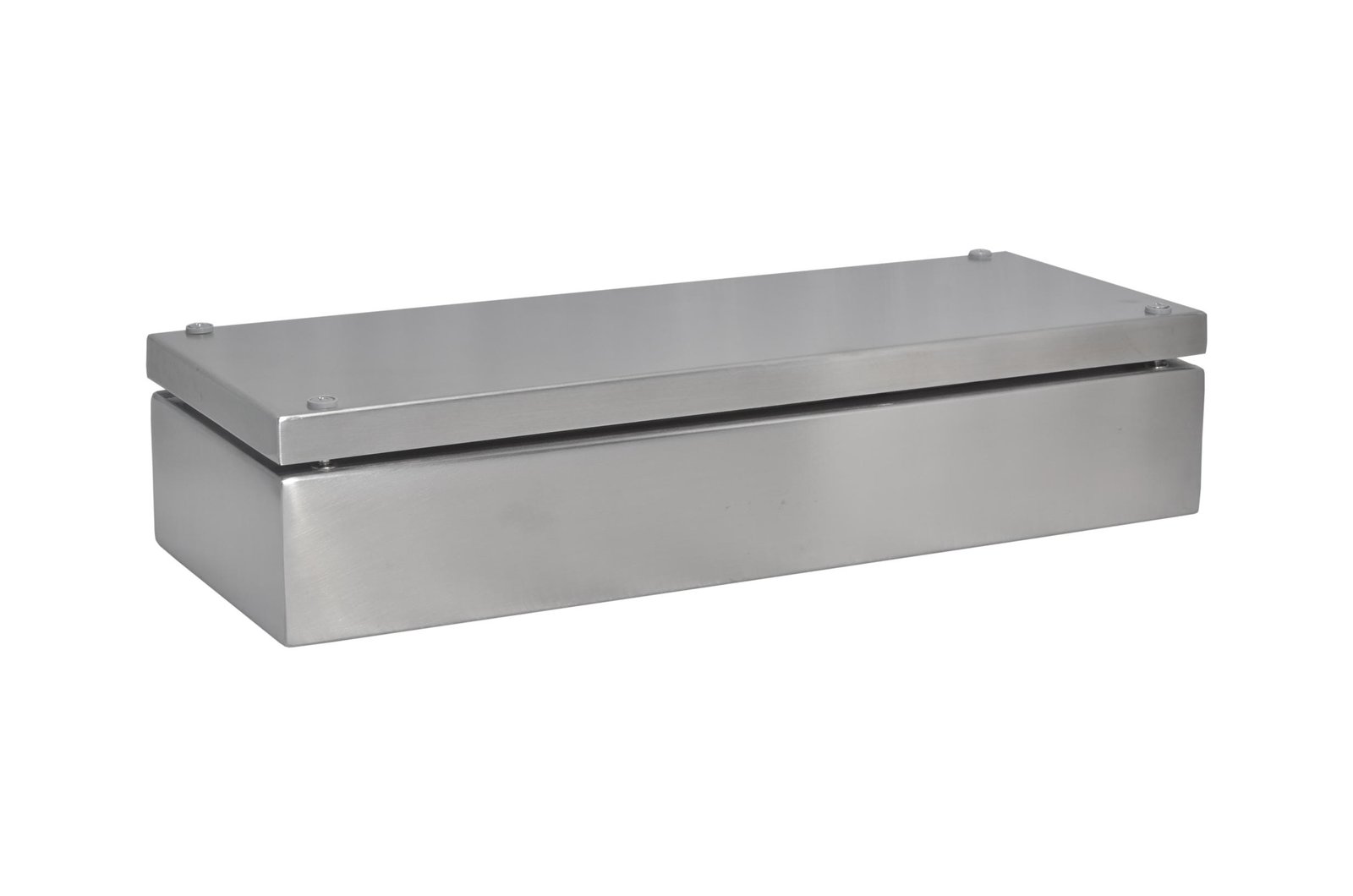

 | OGSJB13 | OG-SSJB-40015081 | 400 | 150 | 81 | Download | Download | Download |

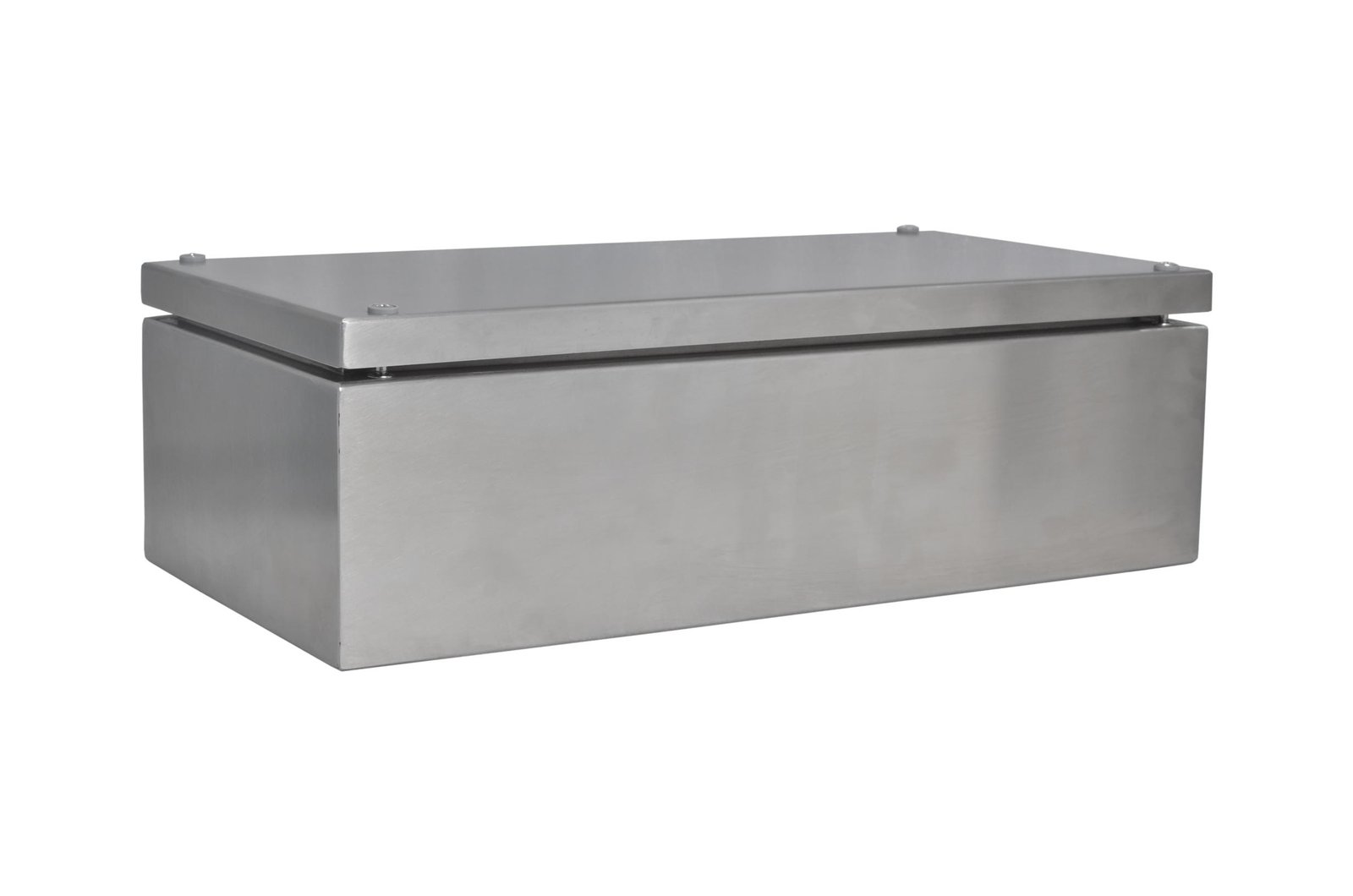

 | OGSJB14 | OG-SSJB-400200121 | 400 | 200 | 121 | Download | Download | Download |

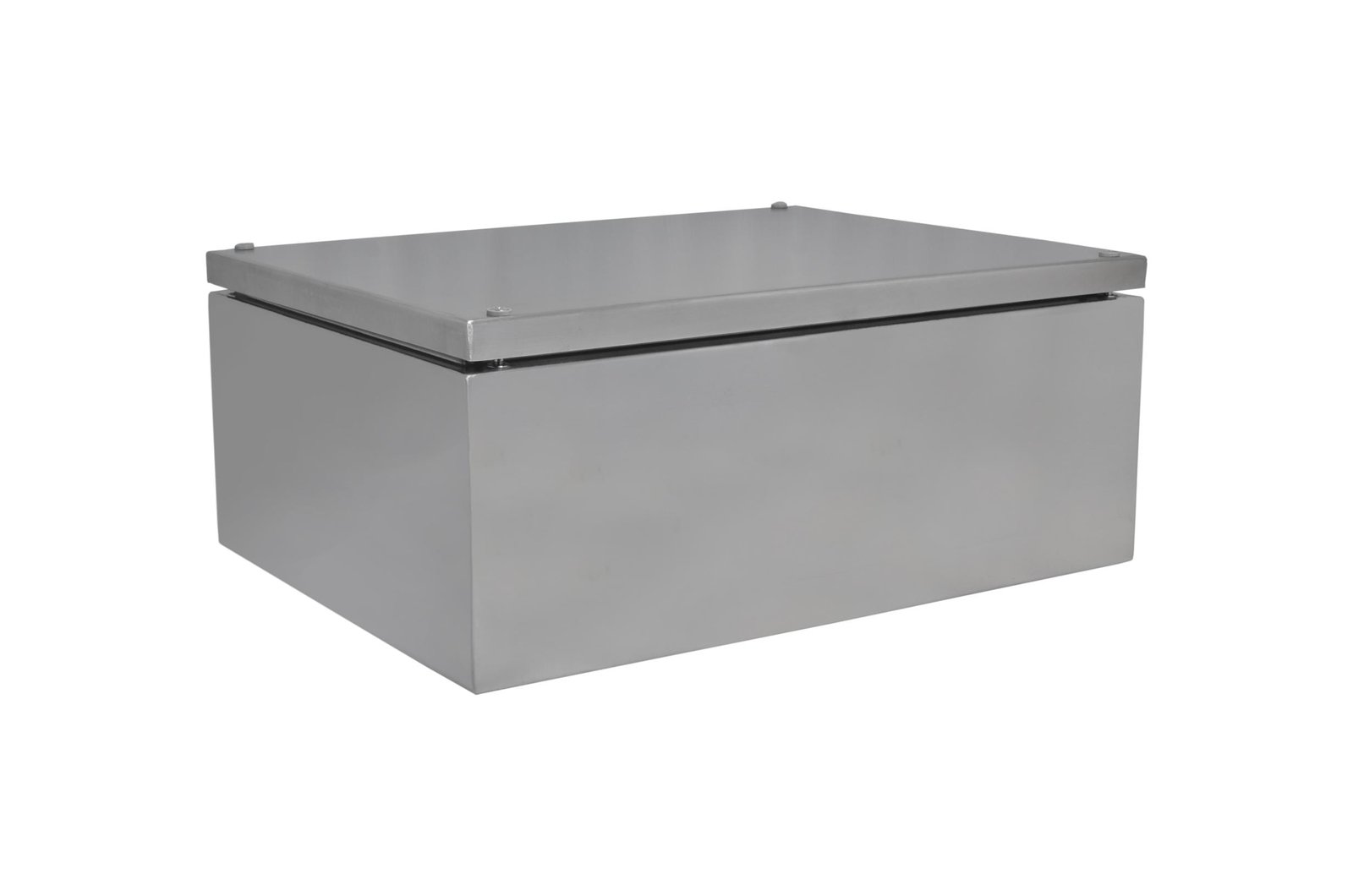

 | OGSJB15 | OG-SSJB-400300161 | 400 | 300 | 161 | Download | Download | Download |

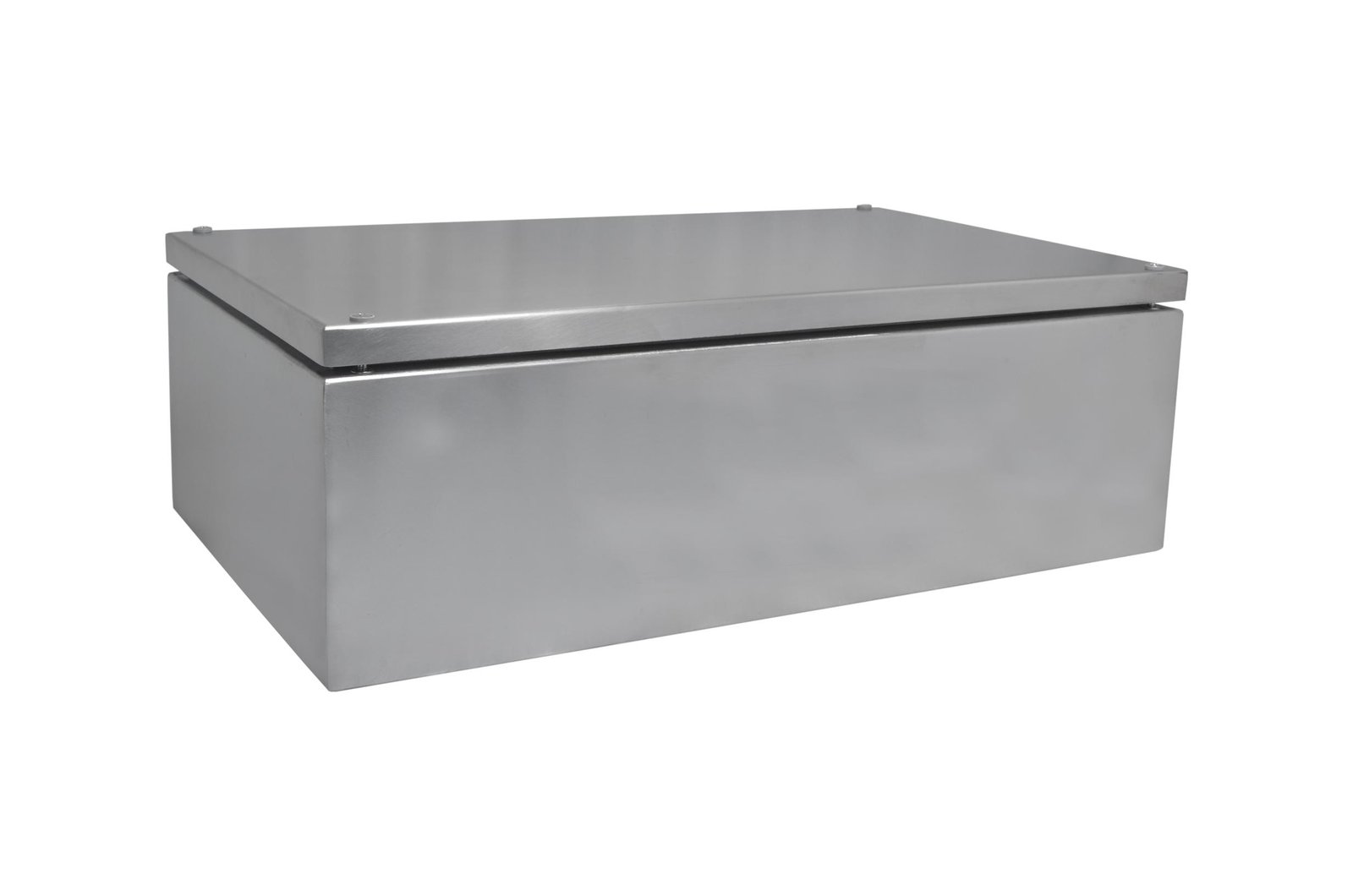

 | OGSJB16 | OG-SSJB-500300161 | 500 | 300 | 161 | Download | Download | Download |

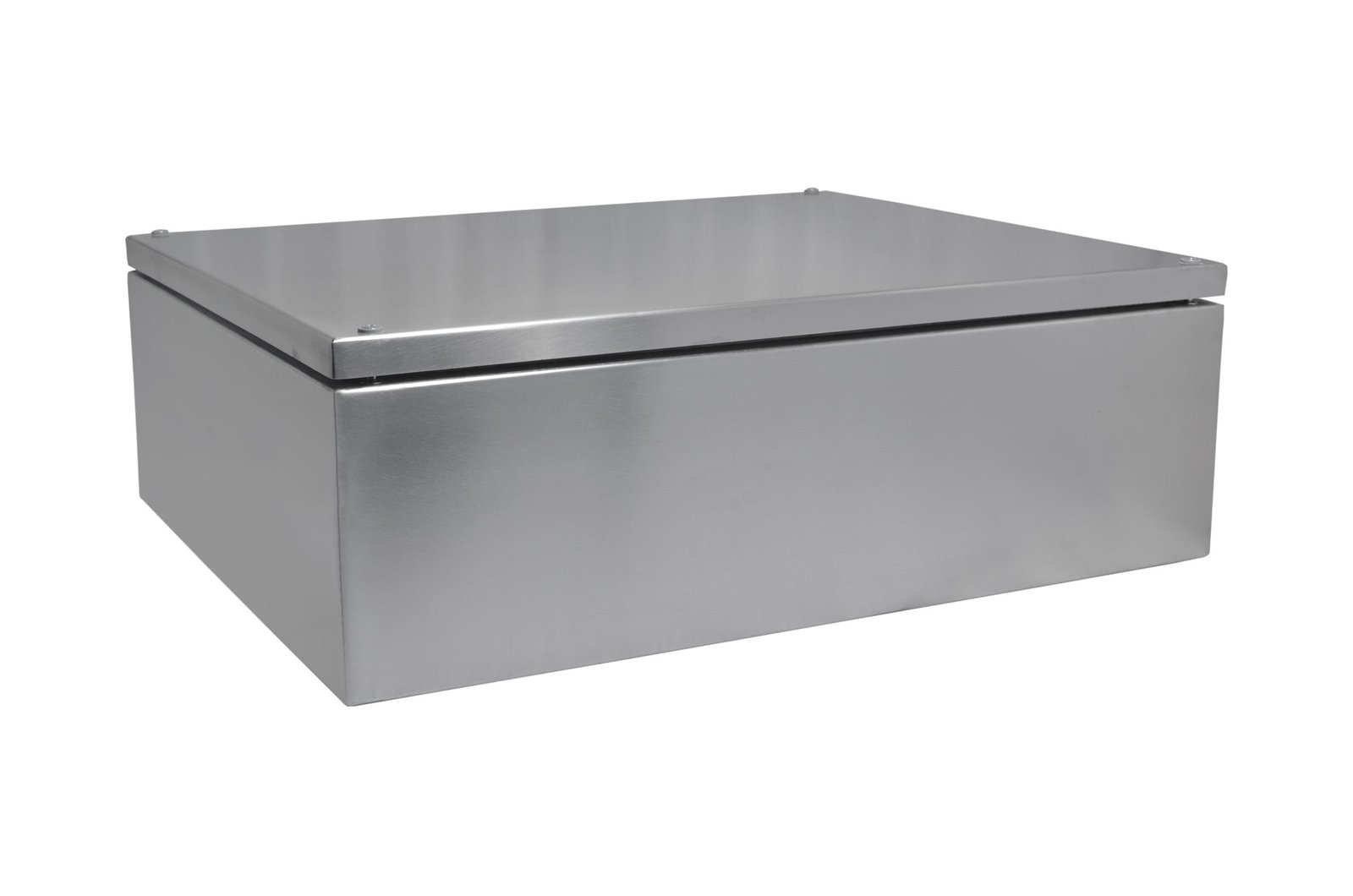

 | OGSJB17 | OG-SSJB-500400161 | 500 | 400 | 161 | Download | Download | Download |

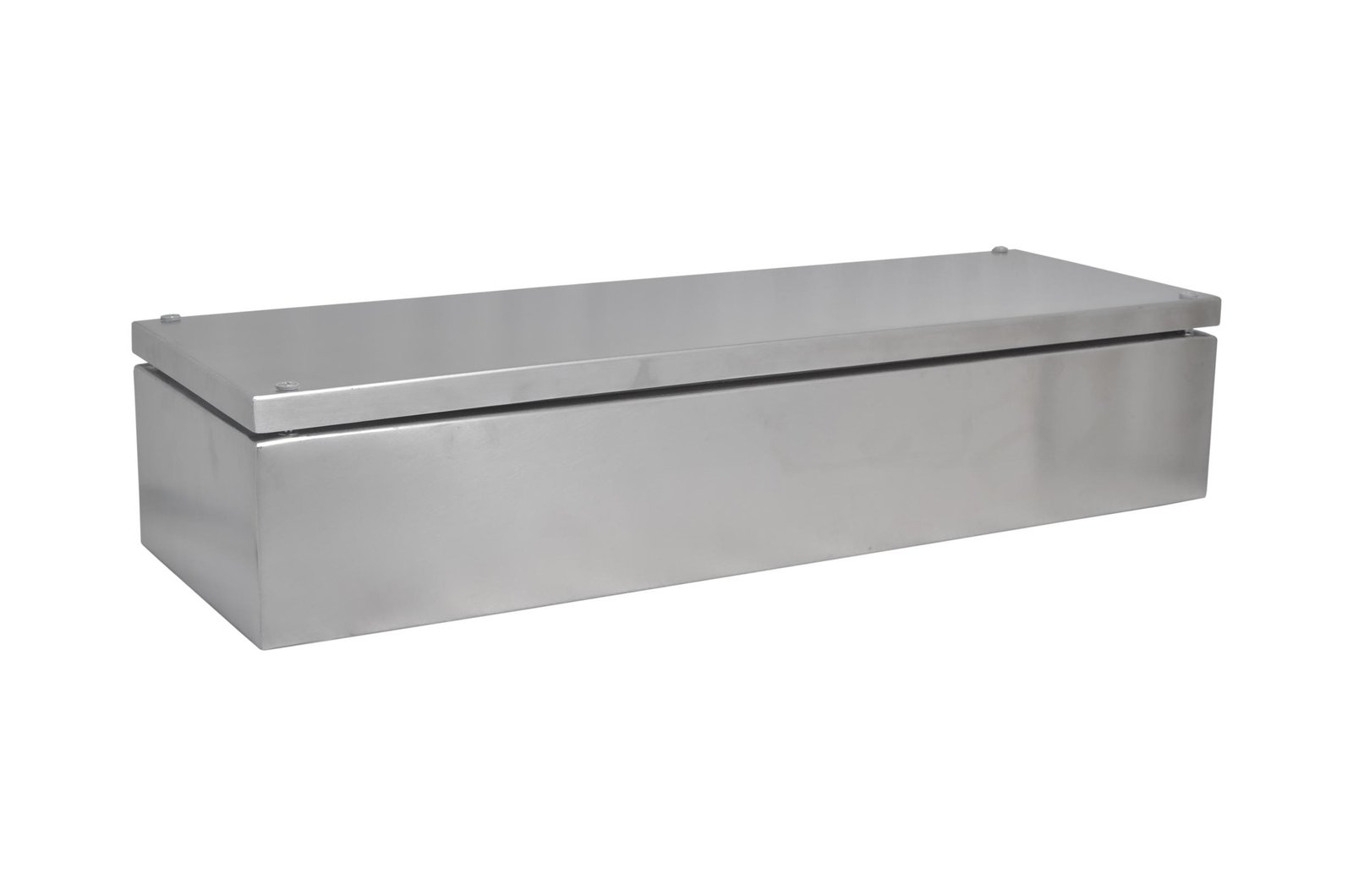

 | OGSJB18 | OG-SSJB-600200121 | 600 | 200 | 121 | Download | Download | Download |
