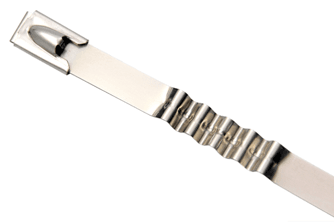

The unique spring form, available in metallic finish, maintains greater installed tension on non-resillent objects.
The cable ties are designed with Wedge Lock Mechanism System for quick installation with low insertion force and strength.
They are resistant to corrosion and suitable for indoor, outdoor or harsh environments.
| Material | A) 316 grade non-magnetic stainless steel |
| B)304grade non-magnetic stainless steel | |
| Temperature Range | -60°C to +300°C |
| Surface Finish | Epoxy Coating/Pure Polyester |
| Flammability Rating | UL94 fireproof, Halogen free and UV-resistant |
| Package Quantity | 100 Pcs/Bag |
| Part No. for Stainless Steel Grade | Width | Length | Thickness | Max. Bundling | Min. Loop Tensile Strength | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SS304 | SS316 | In | mm | In | mm | In | mm | In | mm | N | lbs |
| Ball Lock Spring Type - 4.6 mm width | |||||||||||
| OG-BUs44-200 | OG-BUs46-200 | 0.18 | 4.6 | 8 | 200 | 0.01 | 0.25 | 2.0 | 50 | 445 | 100 |
| OG-BUs44-260 | OG-BUs46-260 | 0.18 | 4.6 | 10 | 260 | 0.01 | 0.25 | 2.7 | 69 | 445 | 100 |
| OG-BUs44-360 | OG-BUs46-360 | 0.18 | 4.6 | 14 | 360 | 0.01 | 0.25 | 3.9 | 100 | 445 | 100 |
| OG-BUs44-520 | OG-BUs46-520 | 0.18 | 4.6 | 20 | 520 | 0.01 | 0.25 | 5.9 | 151 | 445 | 100 |
| OG-BUs44-680 | OG-BUs46-680 | 0.18 | 4.6 | 27 | 680 | 0.01 | 0.25 | 7.2 | 183 | 445 | 100 |
| OG-BUs44-840 | OG-BUs46-840 | 0.18 | 4.6 | 33 | 840 | 0.01 | 0.25 | 10 | 253 | 445 | 100 |
| OG-BUs44-1000 | OG-BUs46-1000 | 0.18 | 4.6 | 39 | 1000 | 0.01 | 0.25 | 12 | 304 | 445 | 100 |
| Ball Lock Spring Type - 7.9 mm width | |||||||||||
| OG-BUs74-200 | OG-BUs76-200 | 0.31 | 7.9 | 8 | 200 | 0.01 | 0.25 | 2 | 50 | 1112 | 250 |
| OG-BUs74-260 | OG-BUs76-260 | 0.31 | 7.9 | 10 | 260 | 0.01 | 0.25 | 2.7 | 69 | 1112 | 250 |
| OG-BUs74-360 | OG-BUs76-360 | 0.31 | 7.9 | 14 | 360 | 0.01 | 0.25 | 3.9 | 100 | 1112 | 250 |
| OG-BUs74-520 | OG-BUs76-520 | 0.31 | 7.9 | 20 | 520 | 0.01 | 0.25 | 5.9 | 151 | 1112 | 250 |
| OG-BUs74-680 | OG-BUs76-680 | 0.31 | 7.9 | 27 | 680 | 0.01 | 0.25 | 7.2 | 183 | 1112 | 250 |
| OG-BUs74-840 | OG-BUs76-840 | 0.31 | 7.9 | 33 | 840 | 0.01 | 0.25 | 10 | 253 | 1112 | 250 |
| OG-BUs74-1000 | OG-BUs76-1000 | 0.31 | 7.9 | 39 | 1000 | 0.01 | 0.25 | 12 | 304 | 1112 | 250 |
| Ball Lock Spring Type - 12.7 mm width | |||||||||||
| OG-BUs124-100 | OG-BUs126-100 | 0.5 | 12.7 | 4 | 100 | 0.02 | 0.4 | 0.7 | 18 | 3115 | 700 |
| OG-BUs124-150 | OG-BUs126-150 | 0.5 | 12.7 | 6 | 150 | 0.02 | 0.4 | 1.3 | 34 | 3115 | 700 |
| OG-BUs124-200 | OG-BUs126-200 | 0.5 | 12.7 | 8 | 200 | 0.02 | 0.4 | 2 | 50 | 3115 | 700 |
| OG-BUs124-260 | OG-BUs126-260 | 0.5 | 12.7 | 10 | 260 | 0.02 | 0.4 | 2.7 | 69 | 3115 | 700 |
| OG-BUs124-360 | OG-BUs126-360 | 0.5 | 12.7 | 14 | 360 | 0.02 | 0.4 | 3.9 | 100 | 3115 | 700 |
| OG-BUs124-520 | OG-BUs126-520 | 0.5 | 12.7 | 20 | 520 | 0.02 | 0.4 | 5.9 | 151 | 3115 | 700 |
| OG-BUs124-620 | OG-BUs126-680 | 0.5 | 12.7 | 24 | 620 | 0.02 | 0.4 | 7.2 | 183 | 3115 | 700 |
| OG-BUs124-840 | OG-BUs126-840 | 0.5 | 12.7 | 33 | 840 | 0.02 | 0.4 | 10 | 253 | 3115 | 700 |
| OG-BUs124-1000 | OG-BUs126-1000 | 0.5 | 12.7 | 39 | 1000 | 0.02 | 0.4 | 12 | 304 | 3115 | 700 |
| Ball Lock Spring Type - 16 mm width | |||||||||||
| OG-BUs164-150 | OG-BUs166-150 | 0.63 | 16 | 6 | 150 | 0.02 | 0.4 | 1.3 | 34 | 3560 | 800 |
| OG-BUs164-200 | OG-BUs166-200 | 0.63 | 16 | 8 | 200 | 0.02 | 0.4 | 2 | 50 | 3560 | 800 |
| OG-BUs164-260 | OG-BUs166-260 | 0.63 | 16 | 10 | 260 | 0.02 | 0.4 | 2.7 | 69 | 3560 | 800 |
| OG-BUs164-360 | OG-BUs166-360 | 0.63 | 16 | 14 | 360 | 0.02 | 0.4 | 3.9 | 100 | 3560 | 800 |
| OG-BUs164-520 | OG-BUs166-520 | 0.63 | 16 | 20 | 520 | 0.02 | 0.4 | 5.9 | 151 | 3560 | 800 |
| OG-BUs164-620 | OG-BUs166-680 | 0.63 | 16 | 24 | 620 | 0.02 | 0.4 | 7.2 | 183 | 3560 | 800 |
| OG-BUs164-840 | OG-BUs166-840 | 0.63 | 16 | 33 | 840 | 0.02 | 0.4 | 10 | 253 | 3560 | 800 |
| OG-BUs164-1000 | OG-BUs166-1000 | 0.63 | 16 | 39 | 1000 | 0.02 | 0.4 | 12 | 304 | 3560 | 800 |
