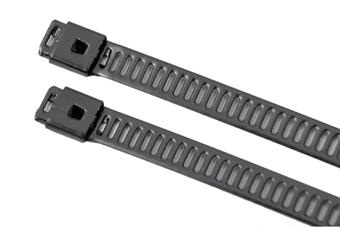

Ladder Type Coated

Ladder Type Cable ties with Pure Polyester coating, using ratchet mechanism.
Ladder Type Cable Ties are designed with Ratchet Mechanism System.
They are resistant to corrosion and suitable for indoor, outdoor or harsh environments.

Reach us via Email:

Material	A) 316 grade non-magnetic stainless steel
Material	B)304grade non-magnetic stainless steel
Temperature Range	-60°C to +300°C
Surface Finish	Metallic
Flammability Rating	UL94 fireproof, Halogen free and UV-resistant
Package Quantity	100 Pcs/Bag

Part No. for Stainless Steel Grade		Width		Length		Thickness		Max. Bundling		Min. Loop Tensile Strength
SS304	SS316	In	mm	In	mm	In	mm	In	mm	N	lbs
Ladder Type - 7 mm width
OG-LC74-150	OG-LC76-150	0.28	7	6	150	0.012	0.3	1.3	34	445	100
OG-LC74-200	OG-LC76-200	0.28	7	8	200	0.012	0.3	2	50	445	100
OG-LC74-225	OG-LC76-225	0.28	7	9	225	0.012	0.3	2.3	58	445	100
OG-LC74-250	OG-LC76-250	0.28	7	10	250	0.012	0.3	2.6	66	445	100
OG-LC74-300	OG-LC76-300	0.28	7	12	300	0.012	0.3	3.1	80	445	100
OG-LC74-360	OG-LC76-360	0.28	7	14	360	0.012	0.3	3.9	99	445	100
OG-LC74-450	OG-LC76-450	0.28	7	18	450	0.012	0.3	5	128	445	100
OG-LC74-600	OG-LC76-600	0.28	7	24	600	0.012	0.3	6.9	176	445	100
OG-LC74-610	OG-LC76-610	0.28	7	24	610	0.012	0.3	7	179	445	100
OG-LC74-750	OG-LC76-750	0.28	7	30	750	0.012	0.3	8.8	224	445	100
OG-LC74-1000	OG-LC76-1000	0.28	7	39	1000	0.012	0.3	11.9	303	445	100
Ladder Type - 12 mm width
OG-LC124-150	OG-LC126-150	0.47	12	6	150	0.012	0.3	1.3	34	1112	250
OG-LC124-200	OG-LC126-200	0.47	12	8	200	0.012	0.3	2	50	1112	250
OG-LC124-225	OG-LC126-225	0.47	12	9	225	0.012	0.3	2.3	58	1112	250
OG-LC124-250	OG-LC126-250	0.47	12	10	250	0.012	0.3	2.6	66	1112	250
OG-LC124-300	OG-LC126-300	0.47	12	12	300	0.012	0.3	3.1	80	1112	250
OG-LC124-360	OG-LC126-360	0.47	12	14	360	0.012	0.3	3.9	99	1112	250
OG-LC124-450	OG-LC126-450	0.47	12	18	450	0.012	0.3	5	128	1112	250
OG-LC124-600	OG-LC126-600	0.47	12	24	600	0.012	0.3	6.9	176	1112	250
OG-LC124-610	OG-LC126-610	0.47	12	24	610	0.012	0.3	7	179	1112	250
OG-LC124-750	OG-LC126-750	0.47	12	30	750	0.012	0.3	8.8	224	1112	250
OG-LC124-1000	OG-LC126-1000	0.47	12	39	1000	0.012	0.3	11.9	303	1112	250
