Aluminium Enclosure

Aluminium Enclosure

Very robust, corrosion-resistant, dust- and waterproof housing made of aluminum in industrial quality for areas of application with the highest requirements. Very often used as a terminal housing / terminal box or distributor housing. With a very high protection class up to IP68, the sensitive components are protected from environmental influences. GBA aluminum housings are available in 36 different sizes as empty housings or machined and equipped (customer-specific) terminal housings. Our aluminum housings are RoHS and REACH compliant.

  • Resistant Aluminium Industrial Enclosures

  • Use Under Demanding Environmental Conditions

  • High Protection Class And Impact Resistance

  • Suitable For The Installation Of Electrical And Electronic Assemblies

Catalog
Add to List Remove to List
Enquire Now

Reach us via Email:

Technical Information

MaterialAluminium Alloy (AlSi12) – DIN
Range31 Standard Sizes
Ingress ProtectionIP 66 Standard
IP 67 | 68 | 69K available on request
Impact ResistanceIK 09 (10 Joules)
Gasket / SealsNeoprene | Silicon | EMC
Temperature Range-60°C to +140°C
Surface FinishNatural Finish (Passivation Treated)
RAL 7001 | Any other shade available on request
AccessoriesMS | GI Mounting Plate
DIN Rail TS15 | TS35 | Wall Mounting Bracket
Internal & External Hinges
Value Added ServicesMachining work for cable entries
Assembly of Terminal Blocks | Cable Glands | Vent Plugs | PCBs
CertificationCE | RoHS | REACH | ISO
Technical Information

Product Range

Product ImageOGPL Article No.OGPL Drawing No.Length (A) (mm)Width (B) (mm)

Depth (C) (mm)

Technical Drawings3D Models

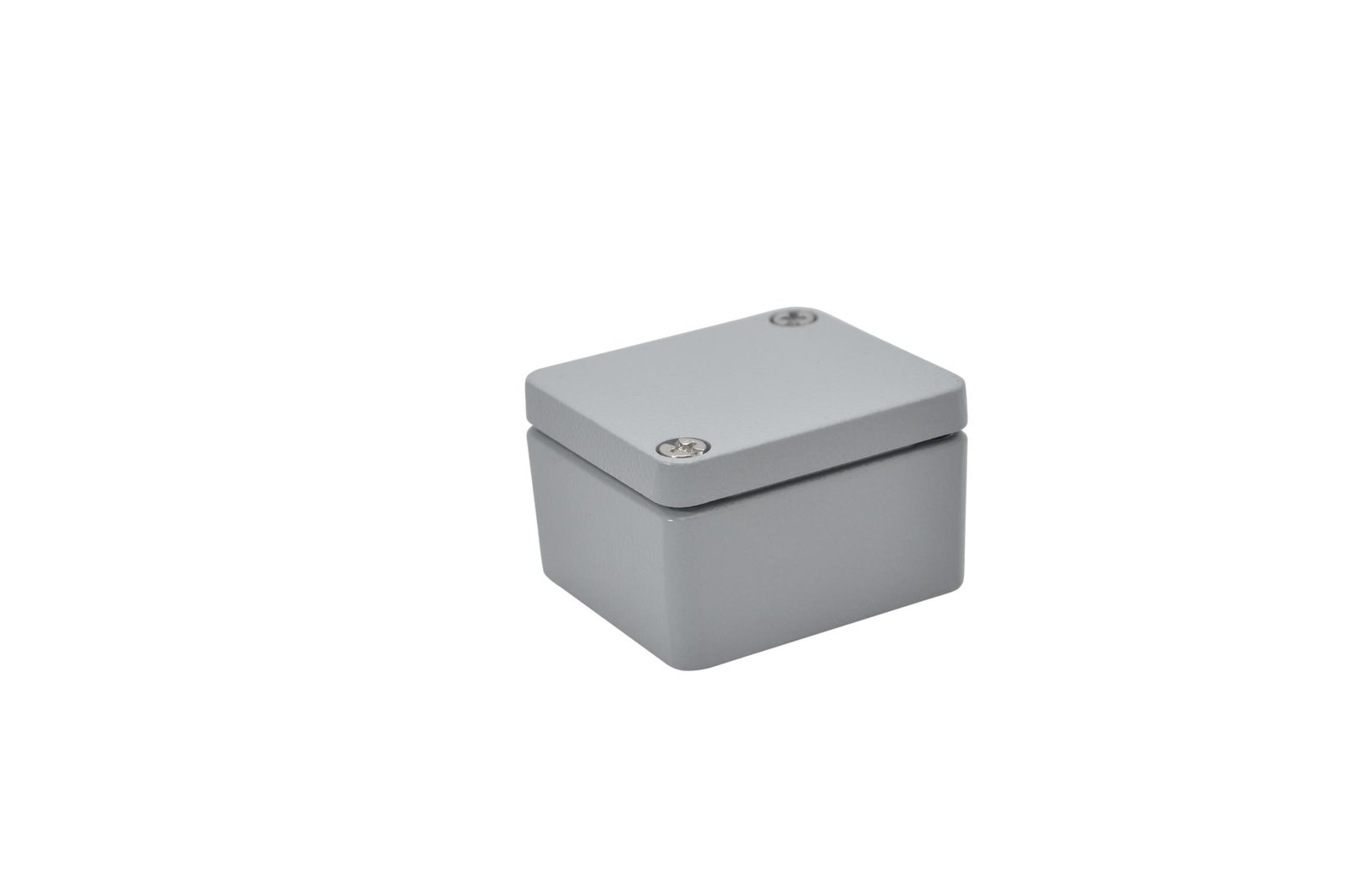

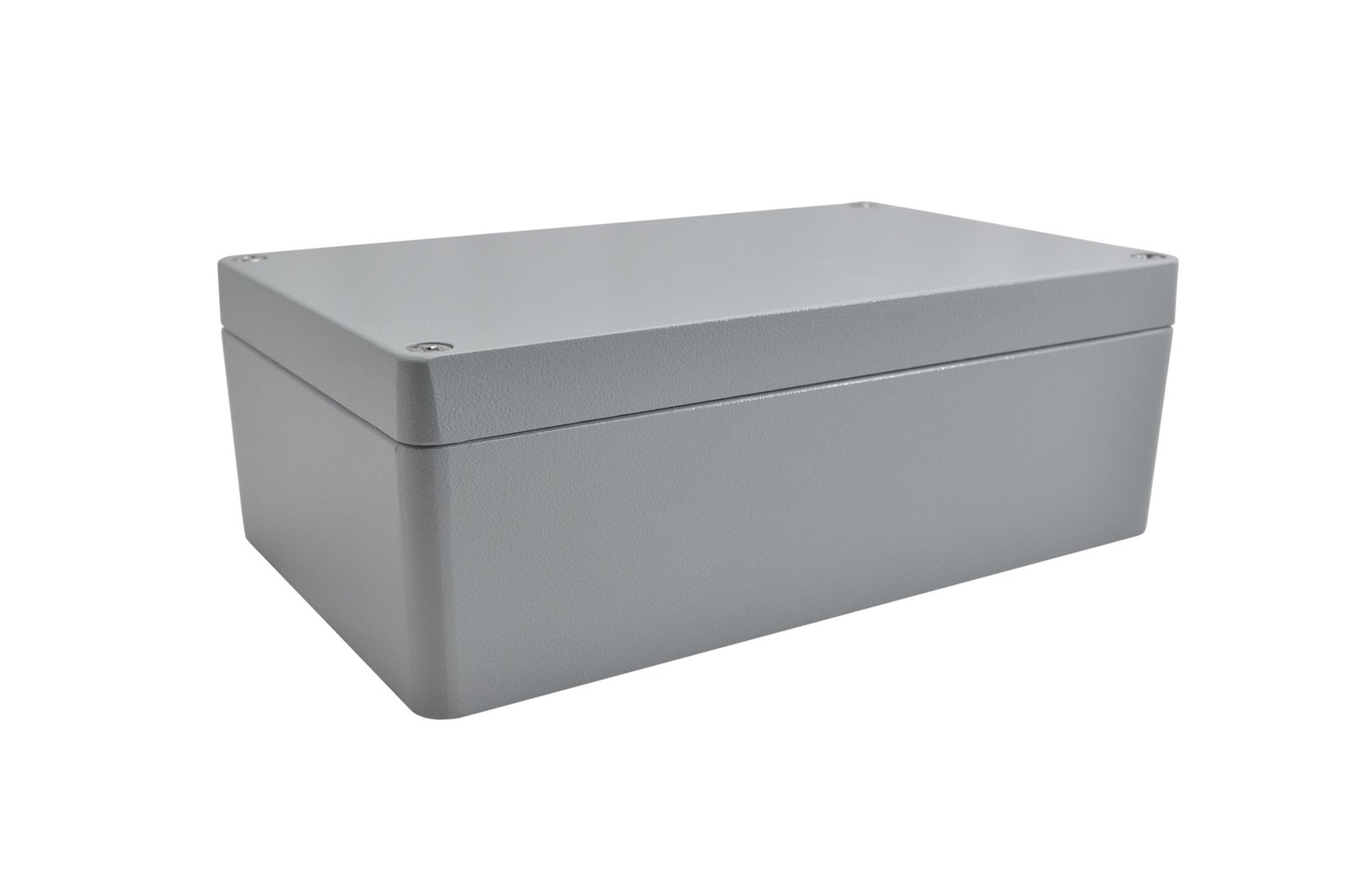

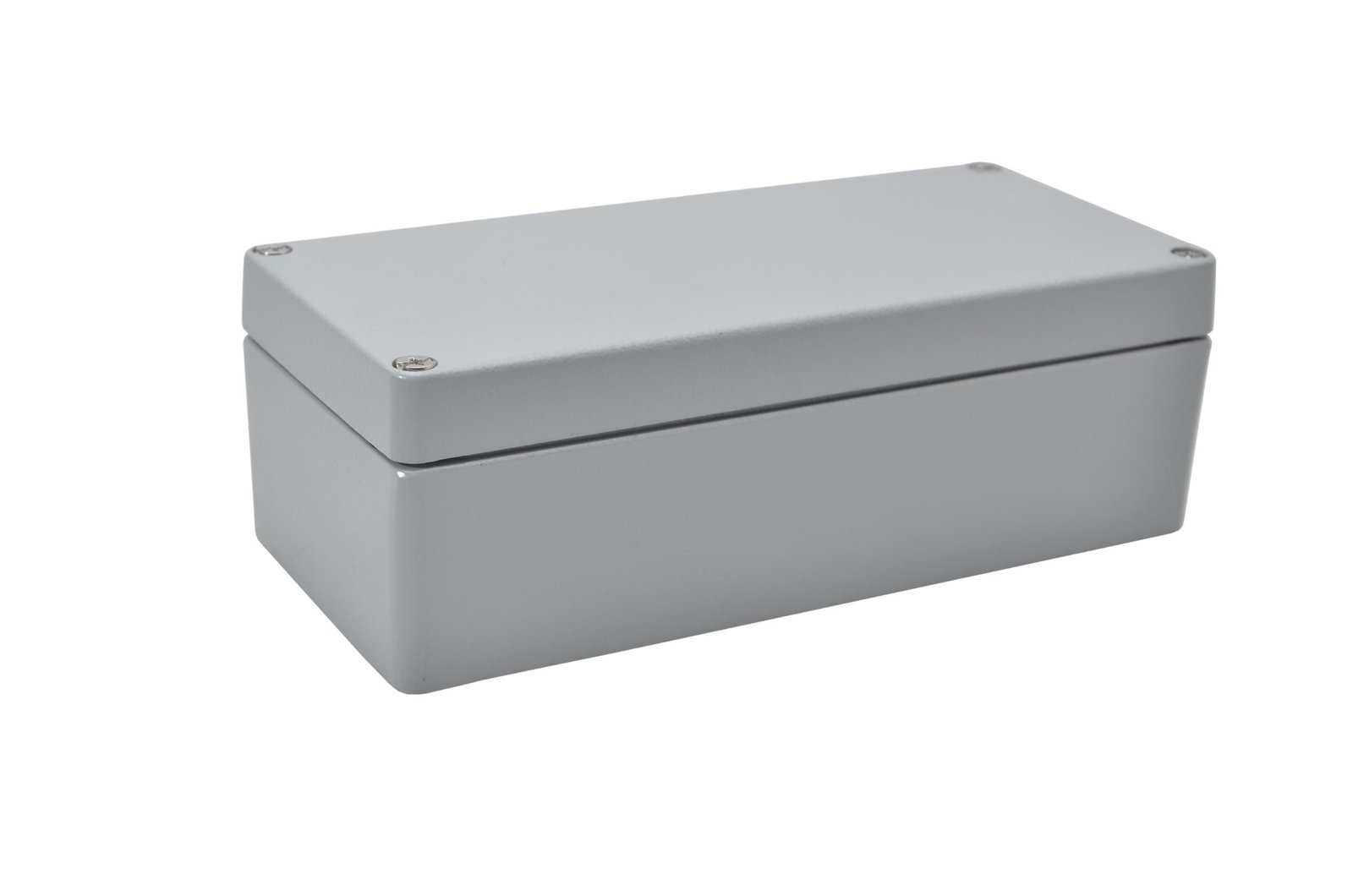

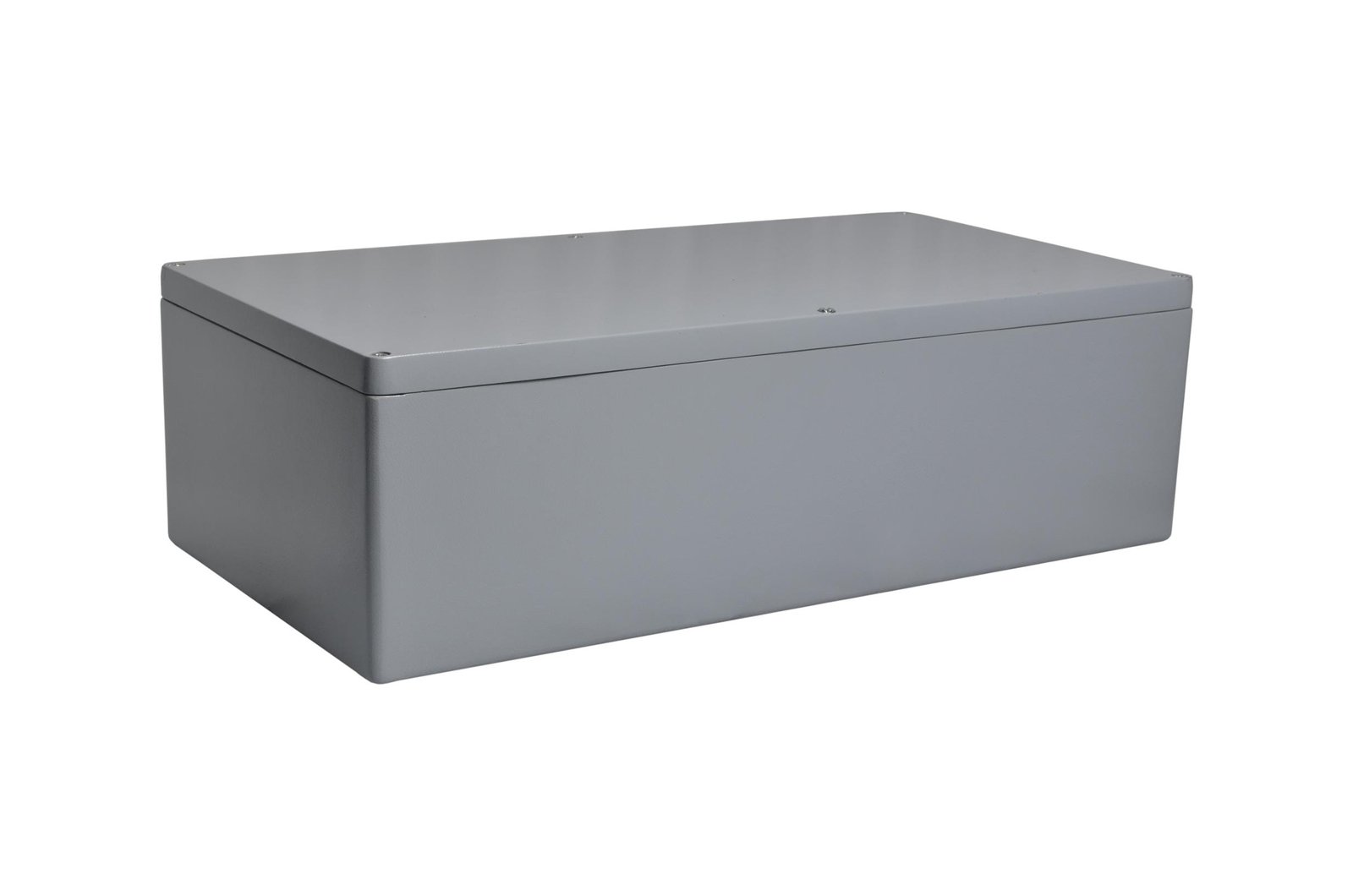

Image descriptionOGAJB01OG-AJB-504530504530DownloadDownload

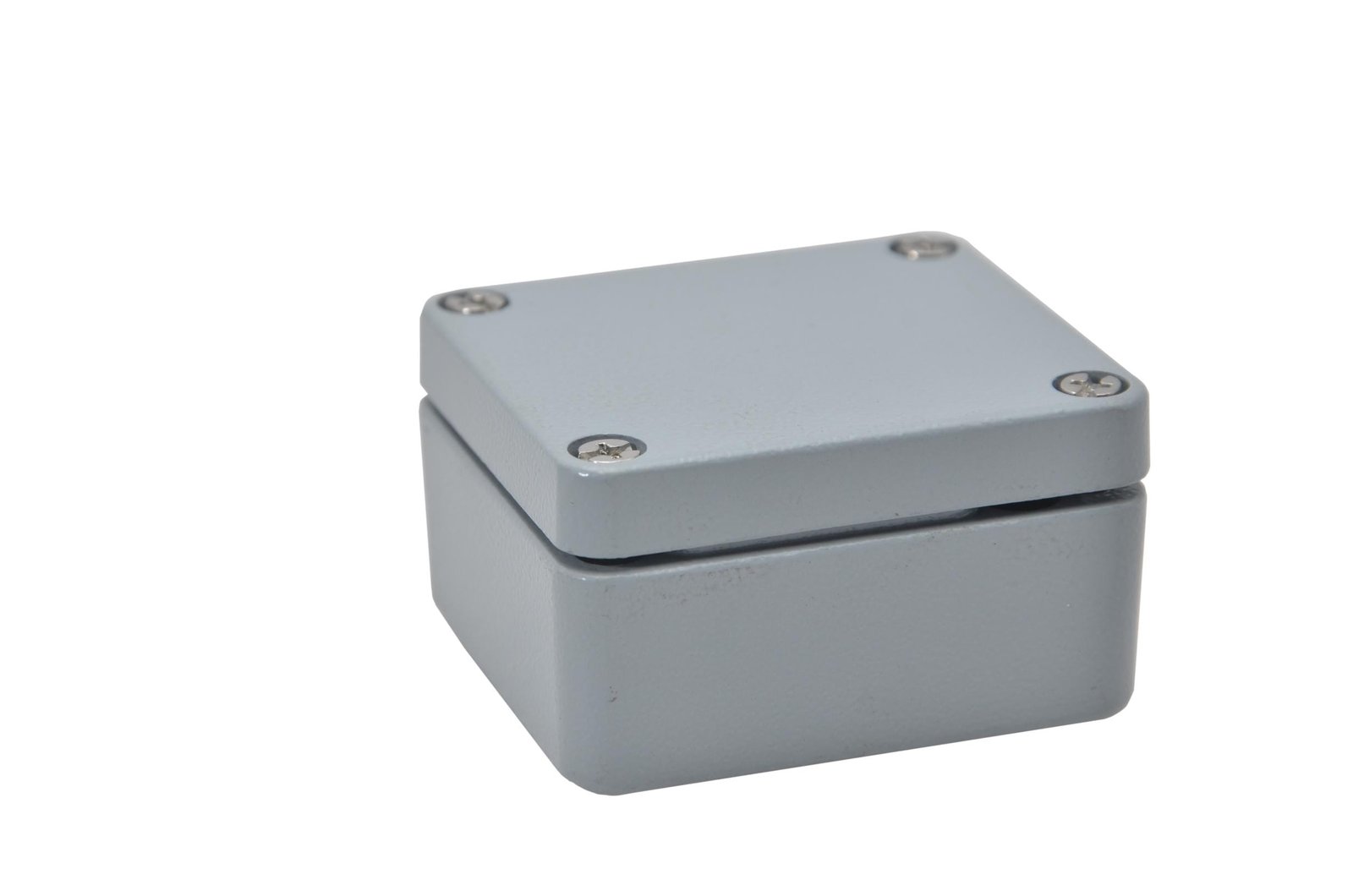

Image descriptionOGAJB04OG-AJB-586434586434DownloadDownload
Image descriptionOGAJB05OG-AJB-986434758057DownloadDownload
Image descriptionOGAJB02OG-AJB-758057986434DownloadDownload
Image descriptionOGAJB09OG-AJB-125805710010080DownloadDownload
Image descriptionOGAJB11OG-AJB-175805712212080DownloadDownload

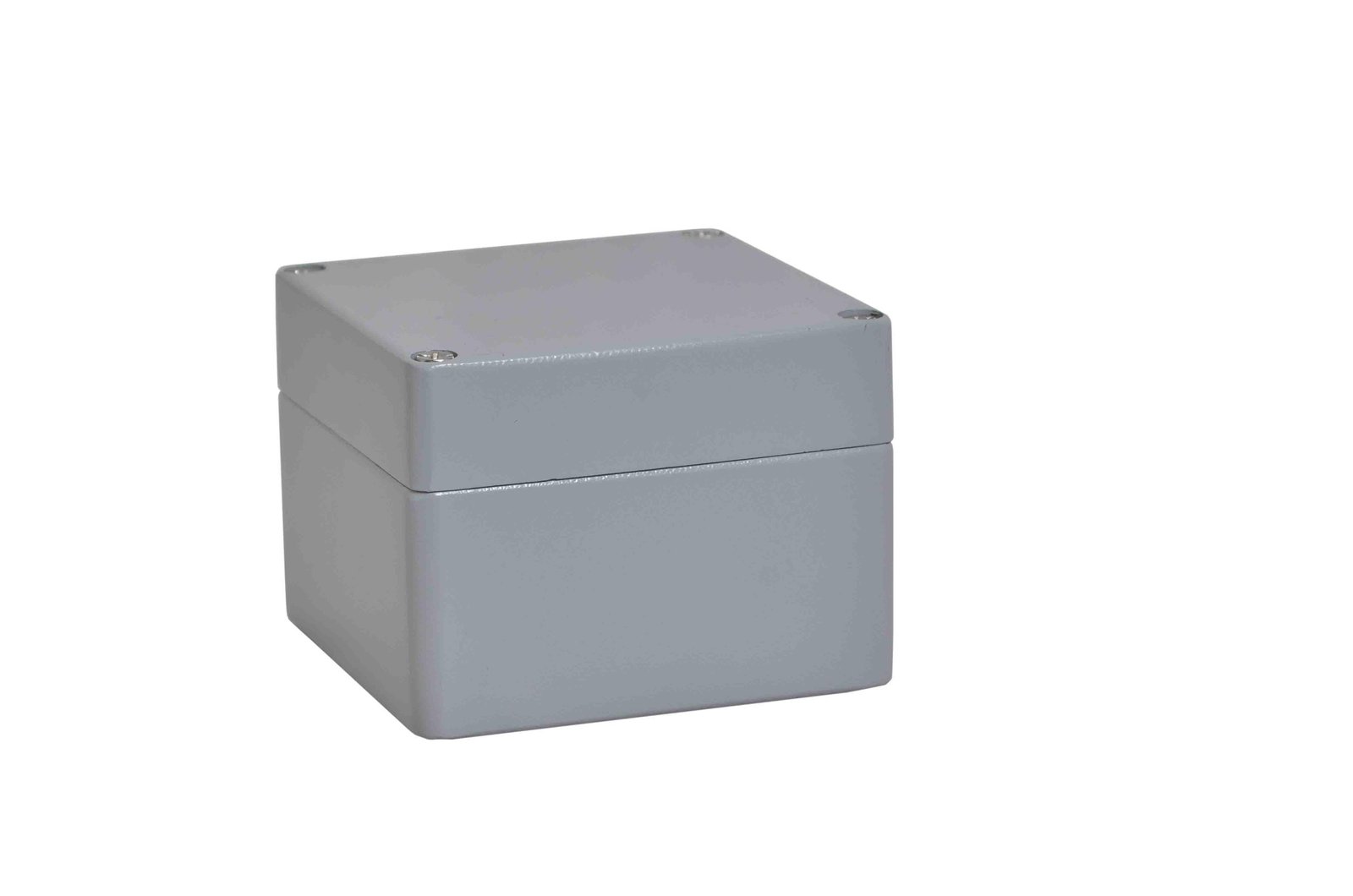

Image descriptionOGAJB22OG-AJB-250805712212090DownloadDownload
Image descriptionOGAJB06OG-AJB-100100811258057DownloadDownload
Image descriptionOGAJB36OG-AJB-1221208114014090DownloadDownload
Image descriptionOGAJB03OG-AJB-122120911506434DownloadDownload
Image descriptionOGAJB10OG-AJB-1401409116010080DownloadDownload

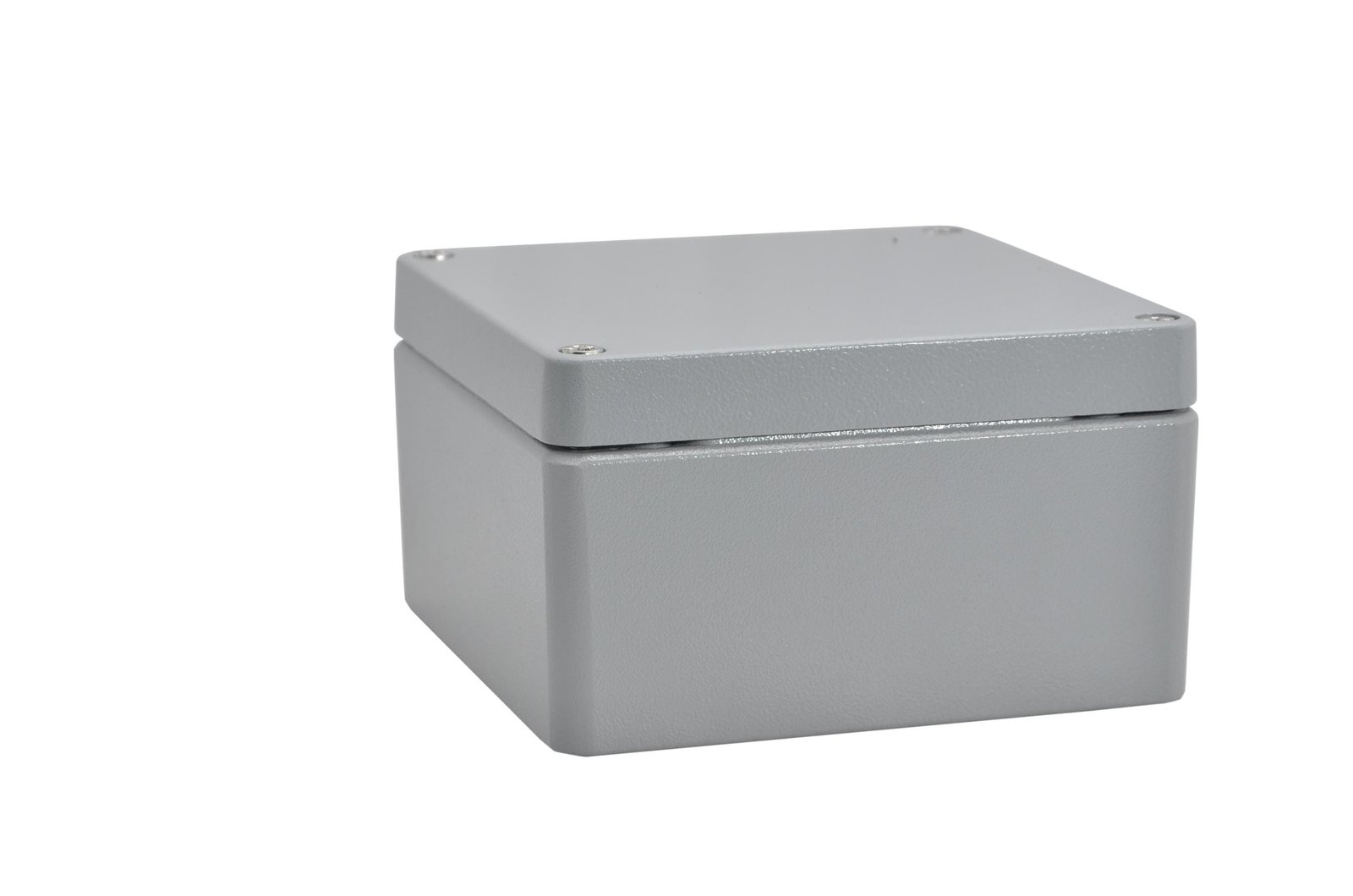

Image descriptionOGAJB15OG-AJB-1601609116016090DownloadDownload
Image descriptionOGAJB07OG-AJB-1801801011758057DownloadDownload

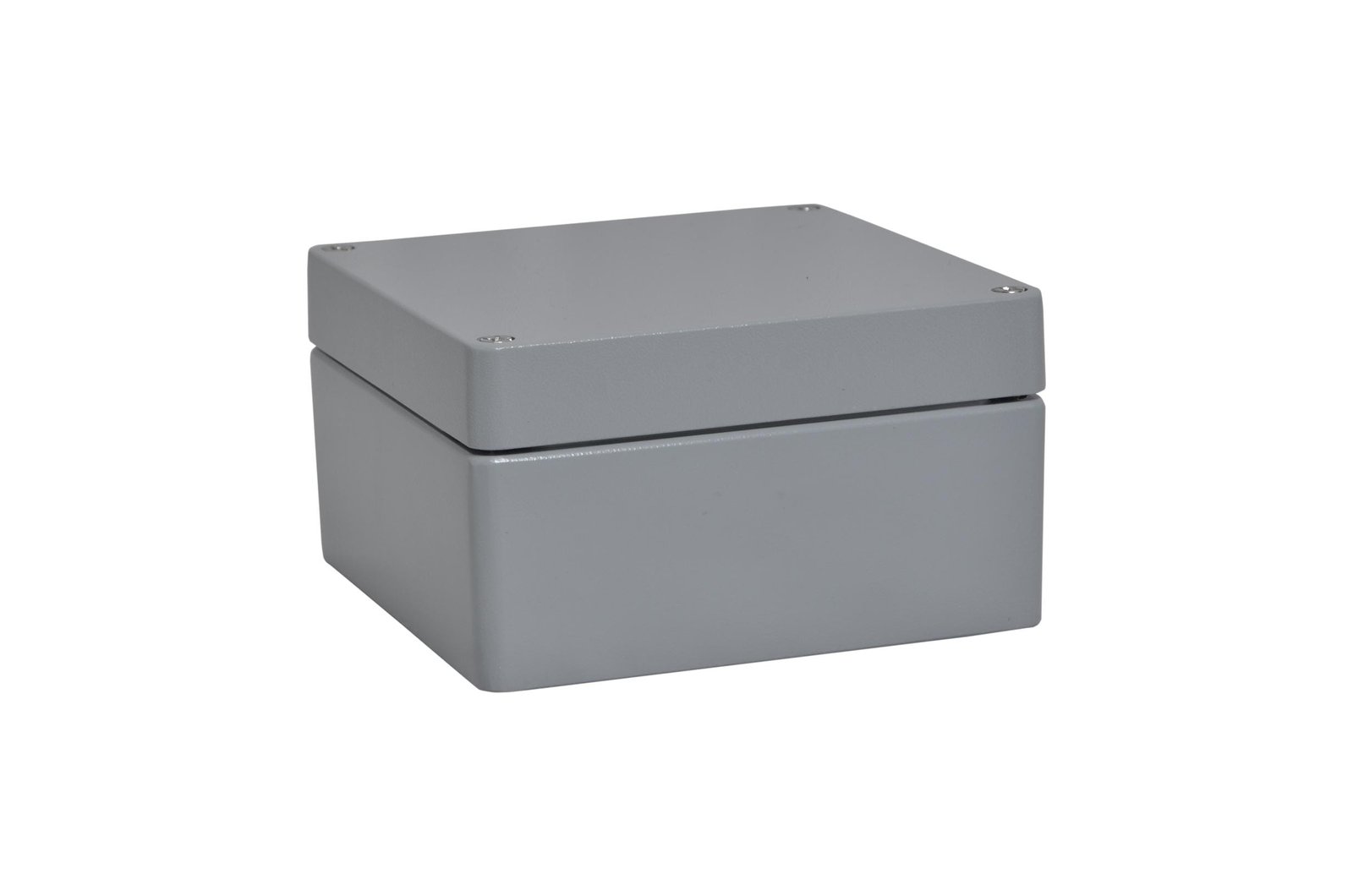

Image descriptionOGAJB28OG-AJB-22012081180180100DownloadDownload
Image descriptionOGAJB37OG-AJB-2201209120014090DownloadDownload
Image descriptionOGAJB12OG-AJB-2601609122012091DownloadDownload
Image descriptionOGAJB21OG-AJB-33023011022012081DownloadDownload
Image descriptionOGAJB19OG-AJB-1506434230200110DownloadDownload
Image descriptionOGAJB30OG-AJB-20014090230200180DownloadDownload
Image descriptionOGAJB08OG-AJB-160100802508057DownloadDownload
Image descriptionOGAJB13OG-AJB-3601609026016090DownloadDownload
Image descriptionOGAJB17OG-AJB-280230110280230110DownloadDownload
Image descriptionOGAJB29OG-AJB-230200110280180100DownloadDownload

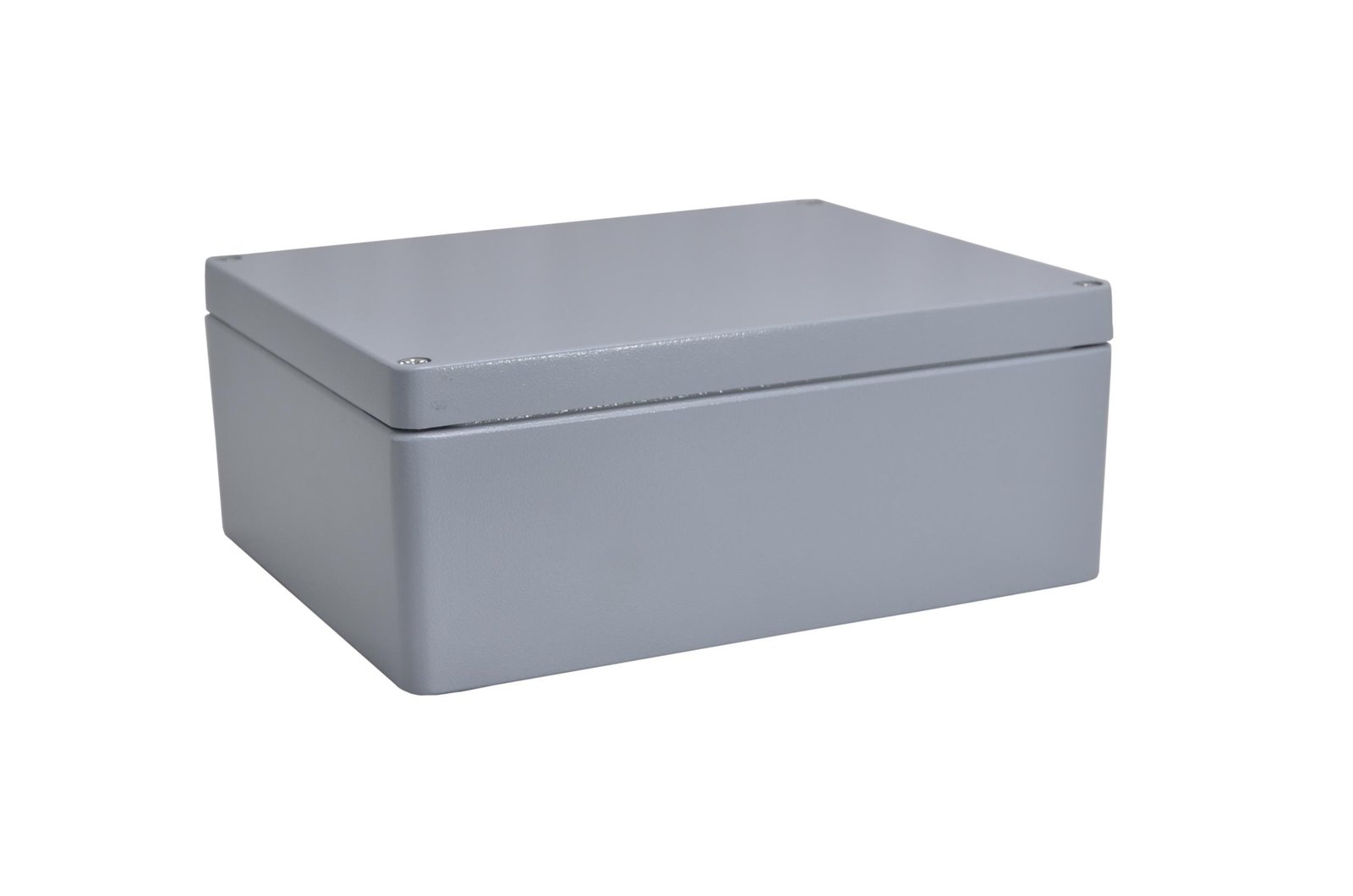

Image descriptionOGAJB18OG-AJB-330230180330230110DownloadDownload
Image descriptionOGAJB20OG-AJB-280180100330230180DownloadDownload
Image descriptionOGAJB14OG-AJB-23020018036016090DownloadDownload
Image descriptionOGAJB31OG-AJB-400310110400310110DownloadDownload

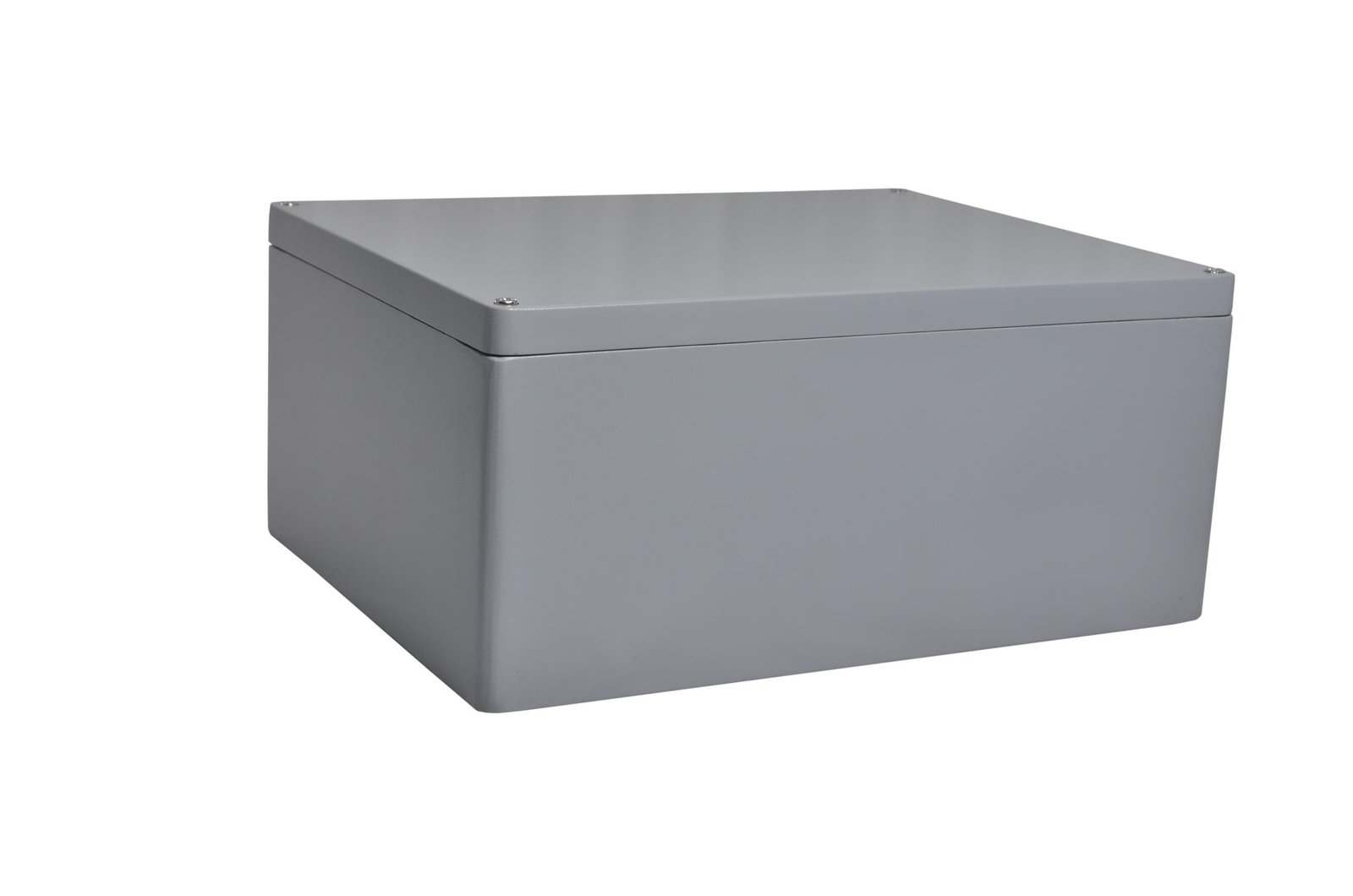

Image descriptionOGAJB32OG-AJB-400310180400310180DownloadDownload
Image descriptionOGAJB35OG-AJB-600310110400230110DownloadDownload

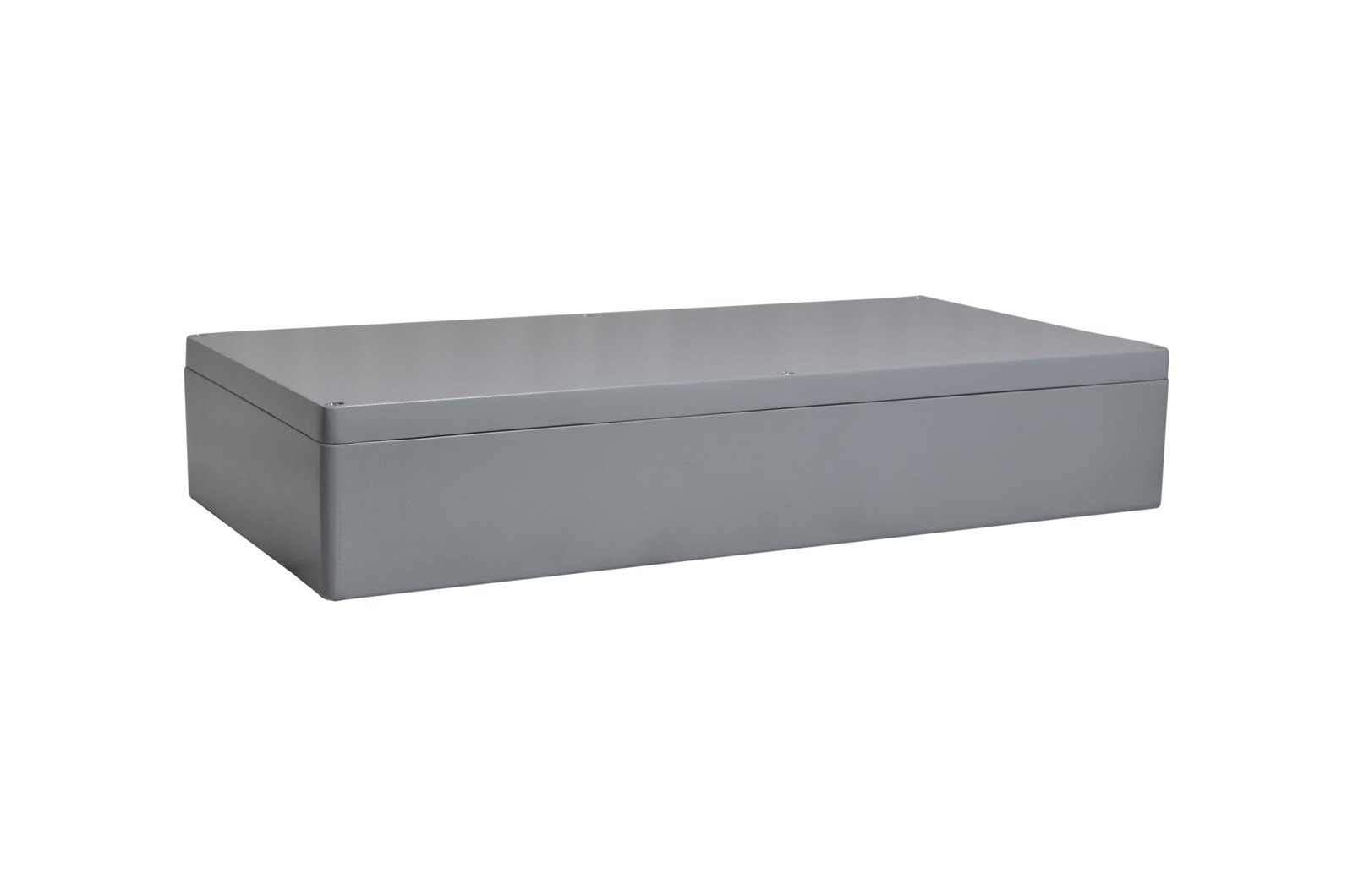

Image descriptionOGAJB33OG-AJB-600310180600310110DownloadDownload
Image descriptionOGAJB34OG-AJB-400230110600310180DownloadDownload
